Description

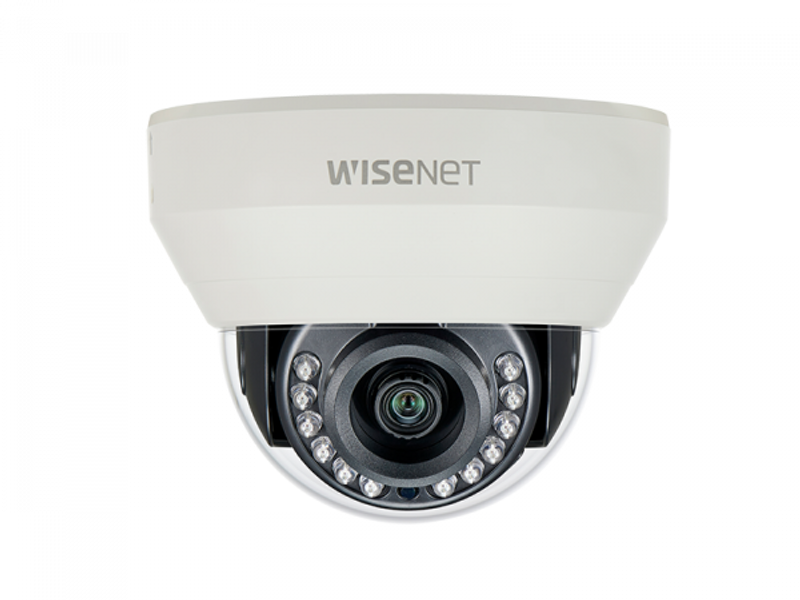

The HD+ series supports 4MP (2560 x 1440) and 2MP (1920 x 1080) resolution with superior clarity down to the last detail. This feature not only provides a better performance than the existing analog system, but also supports the same resolution as the network system without experiencing any delays.
Features:
- Day & Night (ICR), DWDR, Motion detection
- IR Viewable Length 20m
- Transmission distance max.500m
- Easy installation (Plug & play)
Technical Specifications
Imaging Device
1/3" CMOS
Megapixel
4MP
Resolution
2560x1440
Max Framerate
- 30fps@4M(N)
- 25fps@4M(P)
Lux
- Color: 0.26Lux(F1.8
- 1/30sec) BW: 0Lux(IR LED on)
Lens Type
Fixed
Focal Length
2.8mm
Viewing Angle
- H: 107.48°
- V: 59.67°
- D: 122.01°
Protocol
- ACP(AHD Coax Protocol)
- CVBS: Pelco-C(Coaxitron)
Operating Temperature
-10°C ~ +55°C(+14°F ~ +131°F)
Operating Humidity
Less than 90% RH
Voltage
12VDC
Material
Plastic
Color
Ivory
