Description

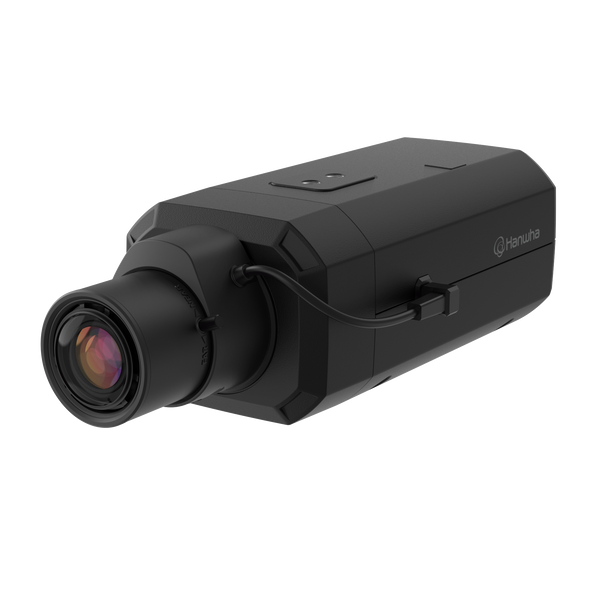

The Hanwha Vision PNB-A9001 4K Indoor Network Box Camera is a high-performance surveillance solution that delivers exceptional image quality with 4K resolution at 30fps. It is equipped with advanced features such as AI-based video analytics, true day/night capabilities, and dual SD card support, making it ideal for both security and business intelligence applications. Its user-friendly installation and powerful analytics features ensure that you can monitor your premises effectively and efficiently.
Features:
- Maximum 4K resolution
- Day & Night(ICR), WDR(120dB), WiseNR? (Using AI engine), Prefer Shutter Video Analytics based on AI - Object detection and classification(Person, Face, Vehicle, License Plate) - Face mask detection, Social distancing detection - Attribute, BestShot
- Requires camera firmware v1.41.03 or later to use Face Mask Detection
- System requirements - SSM v2.10.8 or later, Genetec plugin v1.0 or later, Milestone plugin v1.0.2 or later
Technical Specifications
Megapixel
8MP
Imaging Device
1/1.8" CMOS
Resolution
- 3840x2160
- 3072x1728
- 2592x1944
- 2688x1520
- 2560x1440
- 2048x1536
- 1920x1080
- 1600x1200
- 1280x1024
- 1280x960
- 1280x720
- 1024x768
- 800 x 600
- 800 x 448
- 720 x 576
- 720x480
- 640x480
- 640x360
Max Framerate
H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz)
Lux
- Color: 0.03Lux(F1.2
- 1/30sec) B/W : 0.003Lux(F1.2
- 1/30sec)
Lens Type
- DC auto iris
- P iris
- Manual
- I-CS
Mount Type
- C mount
- CS mount
Day/Night
Auto(ICR)
Ethernet Port
Metal shielded RJ-45(10/100/1000 BASE-T)
Video Compression
- H.265/H.264: Main/High
- MJPEG
Audio Compression
G.711 u-law /G.726 Selectable
Protocol
- IPv4
- IPv6
- TCP/IP
- UDP/IP
- RTP(UDP)
- RTP(TCP)
- RTCP
- RTSP
- NTP
- HTTP
- HTTPS
- SSL/TLS
- DHCP
- FTP
- SMTP
- ICMP
- IGMP
- SNMPv1/v2c/v3(MIB-2)
- ARP
- DNS
- DDNS
- QoS
- UPnP
- Bonjour
- LLDP
- SRTP(TCP
- UDP Unicast)
- MQTT
Memory
- 4096MB RAM
- 512MB Flash
Color
Black
Material
Aluminum
