Description

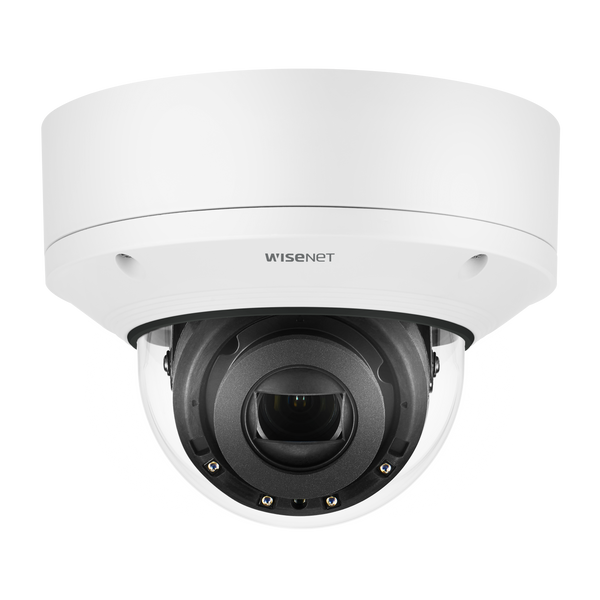

The Hanwha Vision XND-6081REV is a cutting-edge 2-megapixel indoor IR network dome camera designed for superior performance and versatility. Featuring a modular structure and a motorized vari-focal lens, this camera delivers Full HD quality at 60 frames per second, making it ideal for various surveillance applications. With advanced features like PoE Extender, 164-foot IR viewable range, and triple codec support, it ensures efficient monitoring in low light conditions while minimizing bandwidth usage. This camera is built to withstand harsh environments and comes equipped with powerful analytics capabilities, making it a perfect choice for any security setup.
Features:
- Exceptional low-light performance with 0.015Lux in color mode.
- Day & Night (ICR) functionality with 150dB Wide Dynamic Range (WDR) for enhanced image clarity.
- Hallway View and WiseStream II support for optimized video streaming.
- Advanced video & audio analytics, including audio playback for improved monitoring.
- Business Intelligence features such as people counting and heat mapping for operational insights.
- Digital Image Stabilization (DIS) and shock detection with built-in gyro sensor for stable footage.
Technical Specifications
Megapixel
2MP
Imaging Device
1/2.8" 2MP CMOS
Lux
- Color: 0.015Lux(F1.4
- 1./30sec) BW: 0Lux(IR LED)
Focal Length
2.8-12mm
Lens Type
- DC auto iris
- P-iris
Viewing Angle
H: 119.5°(Wide)~27.9°(Tele) / V: 62.8°(Wide)~15.7°(Tele) / D: 142.1°(Wide)~32.0°(Tele)
IR Range
50m(164.04ft)
WDR
150dB
Gain
Low / Middle / High
Ethernet Port
RJ-45(10/100BASE-T)
Video Compression
- H.265/H.264: Main/Baseline/High
- MJPEG
Resolution
1920x1080
Max Framerate
H.265/H.264: Maximum 60fps MJPEG: Maximum 30fps
Audio Compression
- G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz
- G.711 8KHz G.726: 16Kbps
- 24Kbps
- 32Kbps
- 40Kbps AAC-LC: 48Kbps at 16KHz
Memory
- 1024MB RAM
- 256MB Flash
Compliance
- FC
- CUL Listed
- CE
- EAC
Form Factor
Dome
