in stock

Hanwha Vision

SKU QNV-7022R QNV-7022R

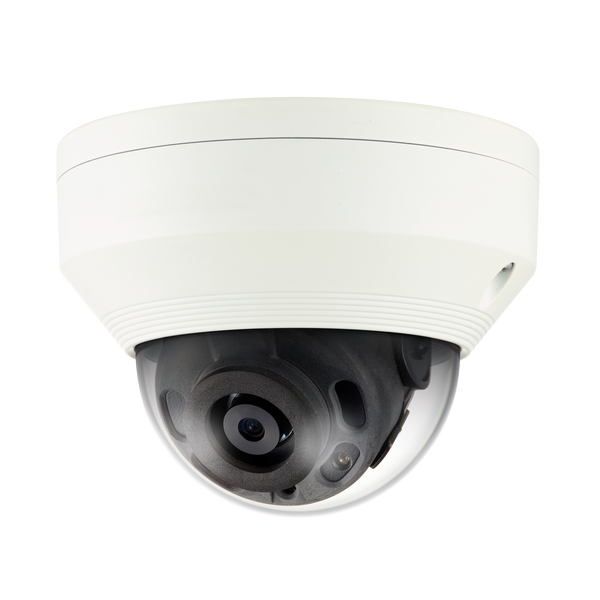

4MP Outdoor Network IR Vandal Resistant Camera with 3.6mm Lens - QNV-7022R

Product Rating Product Rating Product Rating Product Rating Product Rating 0 Reviews
Write a Review
Price:
$429.00
  • Weight:
    1.73 LBS
  • Shipping:
    Calculated at Checkout

Key features

  • Megapixel
  • Color
Sale assistant
Contact our Sales Team for a tailored experience
Adding to cart… The item has been added
?Special Order Information
Sign In for Dealer Pricing Become a BLVS Customer

Description

The QNV-7022R from Hanwha Vision is a 4 megapixel outdoor network IR vandal resistant camera with a 3.6mm lens, designed for high-performance surveillance in harsh environments. With advanced features such as IR capability, motion detection, and multiple streaming options, this camera ensures reliable monitoring and security around the clock.

Features:

  • 4MP resolution for clear and detailed images, enhancing surveillance quality.
  • Day & Night (ICR) functionality along with WDR (120dB) for optimal performance in varying lighting conditions.
  • Advanced detection features including defocus detection, directional detection, and motion detection for proactive security.
  • micro SD (128GB) memory slot and PoE / 12V DC support for versatile power and storage options.
  • Hallway view support and WiseStream II technology optimize bandwidth and storage efficiency.
  • LDC support (Lens Distortion Correction) to ensure image quality is not compromised by lens distortion.

Technical Specifications

Megapixel
4MP
Imaging Device
1/3" CMOS
Resolution
  • 2560 x 1440
  • 1920 x 1080
  • 1280 x 960
  • 1280 x 720
  • 800 x 600
  • 800 x 448
  • 720 x 576
  • 720 x 480
  • 640 x 480
  • 640 x 360
  • 320 x 240
Max Framerate
  • H.265/H.264 : Max. 30fps at 4M all resolutions
  • MJPEG : Max. 15fps
Lux
  • Color : 0.15Lux (F1.6
  • 1/30sec)
  • B/W : 0Lux (IR LED On)
Focal Length
4mm
Lens Type
Fixed
Viewing Angle
  • H : 78.2
  • V : 41.2
  • D : 92.0
WDR
120dB
Day/Night
Auto (ICR)
IR Range
25m (82.02ft)
Video Compression
  • H.265/H.264 : Main/High
  • MJPEG
Audio Compression
  • G.711 u-law / G.726 Selectable.
  • G.726(ADPCM) 8KHz
  • G.711 8KHz
  • G.726 16Kbps
  • 24Kbps
  • 32Kbps
  • 40Kbps
Operating Temperature
-40C~+55C (-40F~+131F)
Operating Humidity
Less than 95% RH
Color
White

Datasheet
