Description

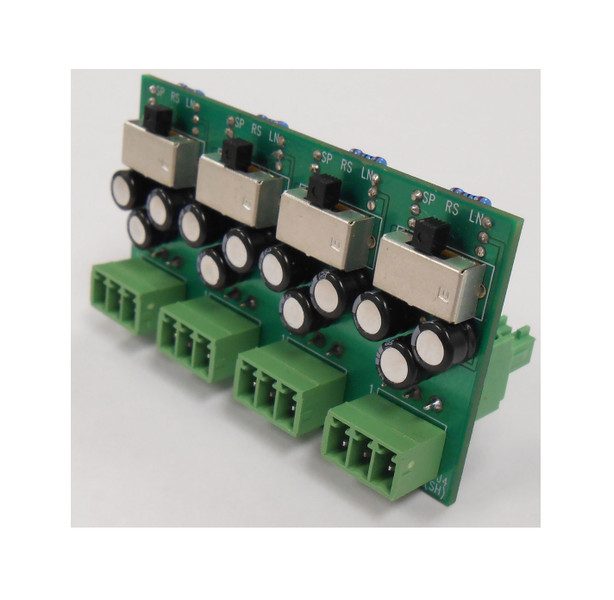

The Q-N8000LC is an accessory adapter for the N-8000RS or N-8010RS, N-8000 Substation Interface Unit, which converts the output signal of the interface unit into a line-level audio signal or a 25V line speaker output. It is equipped with four channel outputs with a level selection switch, which allows individual level adjustment for each channel.
Features:
- 4 channels
- Input: Eurostyle terminal connector (3pin) x4
- Output: Removable terminal (3pin) x4 (Connectors are supplied with N8000/8010RS)
- Three-position slide switch x4
Technical Specifications
Signal Level
Signal Adjustment: Three-position slide switch x4
Connector Type
Output Signal : “SP”: Speaker Output (1w@25V) “RS”: Bypass Output (Original N-8000/8010RS signal) “LN”: Line Level Output (+9dBV max.)
Dimensions
2.72”(w) x 1.54”(h) x 1.10”(d)* (69 x 39 x 28mm*)
Weight
1.09 oz (31g)
Warranty
5 Years Warranty
