TOA Electronics

SKU N-8600MS Y N-8600MS Y

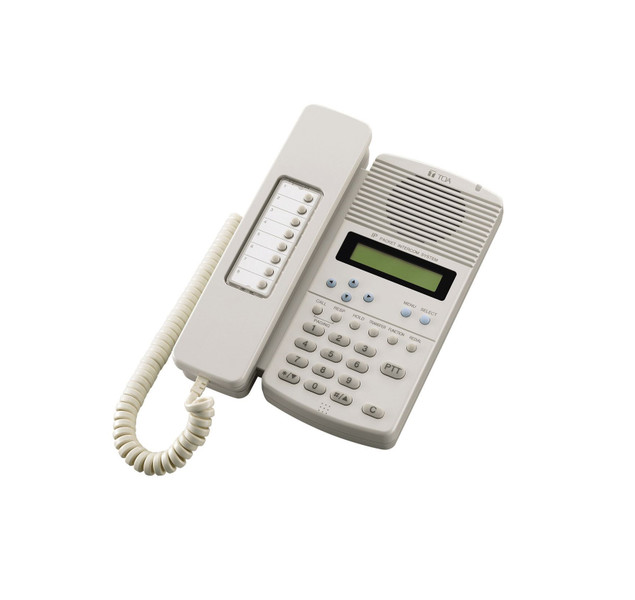

IP Master station with caller ID displa - N-8600MS Y

Product Rating Product Rating Product Rating Product Rating Product Rating 0 Reviews
Write a Review
Price:
$1,907.00
  • Weight:
    1.70 LBS
  • Shipping:
    Calculated at Checkout

Key features

Voltage 12VDC
Microphone Omni-directional electret condenser microphone
Speaker Size 5.7 cm (2.24") cone-type
Ethernet Port 10BASE-T/100BASE-TX
Operating Temperature 0 °C to +40 °C (32 °F to 104 °F)
Operating Humidity 90 %RH or less (no condensation)
5 Years Warranty
Sale assistant
Contact our Sales Team for a tailored experience
Adding to cart… The item has been added
?Special Order Information
Sign In for Dealer Pricing Become a BLVS Customer

Description

The N-8600MS is an IP multifunctional master station employing packet audio technology. Connecting the N-8600MS to an IP network (LAN or WAN) permits hands-free or handset conversation of high sound quality to be made between the N-8600MS and intercom stations connected to the IP Intercom Exchange, or between the N-8600MS units. Besides, the N-8600MS can be used in conjunction with the Multi Interface units through a network. The Multifunctional Master Station provides LCD display, Auto-dialer function enabling one-touch dialing, headset terminal and external speaker terminal. Power can be supplied from the PoE (Power over Ethernet) switching hub. (In this case, an AC adapter is not required.) This station can be mounted to the wall using an optional YC-280 wall mounting bracket.

Features:

  • With LC-Display
  • Hands-free or handset conversation
  • Auto-dialer function
  • Headset terminal
  • External speaker terminal
  • High sound quality
  • PoE
  • Status LED

Technical Specifications

Voltage
12VDC
Consumption
  • 3W
  • 2.5W
Frequency
  • 16 kHz
  • 8 kHz
Microphone
Omni-directional electret condenser microphone
Speaker Size
5.7 cm (2.24") cone-type
Ethernet Port
10BASE-T/100BASE-TX
Protocol
  • TCP/IP
  • UDP
  • HTTP
  • RTP
  • ARP
  • ICMP
  • IGMP
Operating Temperature
0 °C to +40 °C (32 °F to 104 °F)
Operating Humidity
90 %RH or less (no condensation)
Material
ABS Resin
Mount Type
  • Desk Mount
  • Surface Mount
  • Wall Mount
Display Type
LCD: Alphanumeric characters
Warranty
5 Years Warranty
