Description

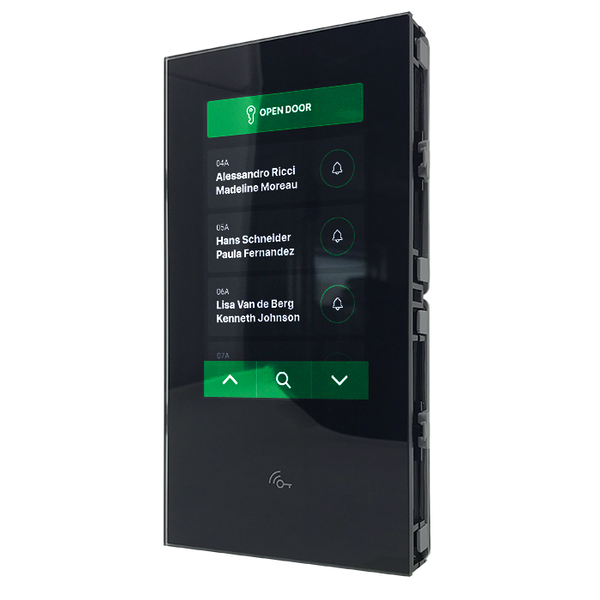

The UT9270 from Comelit is a touch-screen module, ultra, designed to enhance the functionality and ease-of-use of your entrance panel. With its intuitive graphic interface, Bluetooth connectivity, and customizable features, this module provides seamless integration and control for both residential and commercial environments.
Features:
- A touchscreen module for Ultra entrance panel, compatible with all systems, enhancing user interaction.
- Allows easy management of names in the directory using the installer’s MyComelit app for improved directory access.
- Graphic interface can be tailored for direct calls, commercial display logos, automated openings, and real-time apartment block messages.
- Acts as a number keypad to directly contact users based on known codes or activate access control features.
- Equipped with an RFID reader for opening activation using keys or Comelit cards, enhancing security and convenience.
- Designed with dimensions equivalent to 2 ultra modules, fitting seamlessly into installations.
Technical Specifications
Material
Polycarbonate
Color
Black RAL9005
Mount Type
- Flush Mount
- Wall Mount
Display Type
Graphic LCD
Resolution
800x480
Voltage
33VDC
Absorption
3.3 W
Call Type
Digital
Button Type
Capacitive
Card Reader
RFID Mifare Classic
Compliance
- RoHS II - 2011/65/UE (EN IEC 63000:2018)
- EMC 2014/30/UE (EN 61000-6-1:2007
- EN 61000-6-3:2007+A1:2011)
Dimensions
9.744x6.083x2.953
Weight
0.441
