Description

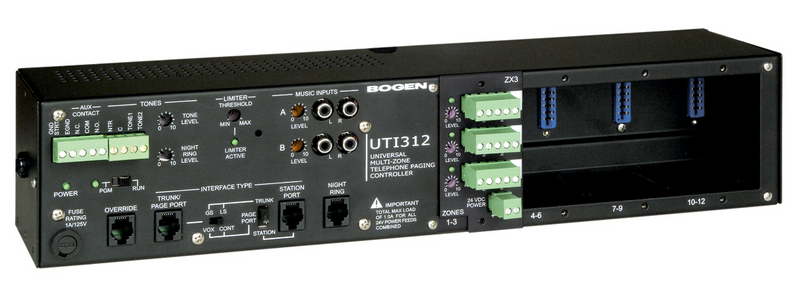

The UTI312 Zone Paging Controller provides multi-zone paging for one-way applications such as self-amplified speaker systems, with each output capable of providing audio for up to 150 self-amplified speakers.
Features:
- Expandable from 3 up to zones using modules.
- Up to programmable paging zone groups.
- Telephone interfaces: loop start trunk, ground start trunk, station access (analog ring-up), page port contact closure activation, page port voice activation.
- Provides audio drive for up to one-way self-amplified speakers per zone.
- Adjustable output limiter with threshold control and active indicator.
- Override paging (using loop start trunk or page port contact closure activation) with zone group.
Technical Specifications
Color
Black
Impedance
- Input: 600 ohms
- Output: 8 ohms
Sensitivity
-30 dBm
Duration
- Default: 10s to 990s
- VOX: 1s to 9s
Voltage
120V AC
Current
0.75A
Operating Temperature
0 to 104º F (-18 to 40º C)
Operating Humidity
0 to 85% non-precipitating
Dimensions
- 16-3 /8" W x 3-1 /2" H x 4-7 /8" D
- 19" W x 3-1 /2" H x 4-7 /8" D
Compliance
- C-UL (UL60950)
- FCC Part 68 Registered
- FCC Part 15 Compliant
- Industry Canada CS-03
Warranty
2-Year Limited Warranty
