Description

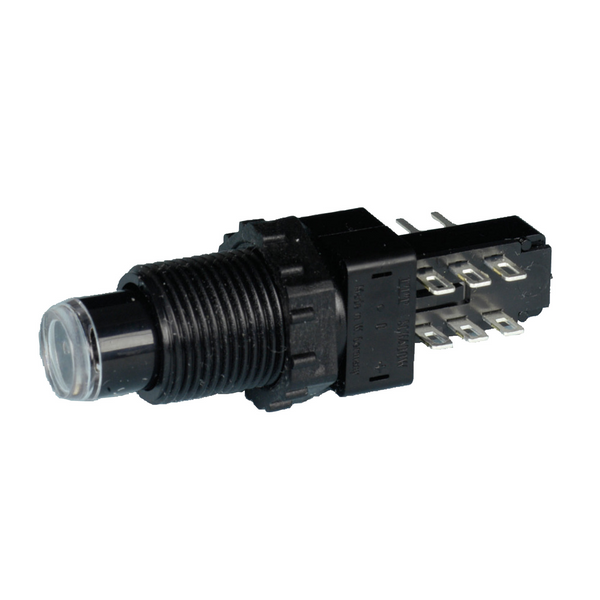

DPDT Indicating Shunt Switch
Features:
- Push-button
- Momentary
- Black plastic
- Surface mount
- Egress switch, normally-closed
- Emergency egress
Technical Specifcations
Type
D.P.D.T. alternate action pushbutton (convertible to momentary)
Contact Rating
2 A @ 28 V DC (also 35 V per datasheet)
Hole Mount Diameter
9/16in (0.56in)
Indicator
Changes from black to orange on activation
Terminals
Solder-type terminals
Material
- Internal contacts (likely plated metal)
- housing hardware plastic/aluminum
Finish
Plastic dressing nut (black)
Dress Nut
Black plastic included
Lock Nut
Black plastic included
Guard Ring Options
- 11C guard rings: white
- red
- blue
- black
Mounting
Flush panel mount through hole
Dimensions
Standard push-button style (not specified)
Warranty
Limited Lifetime Warranty
