Description

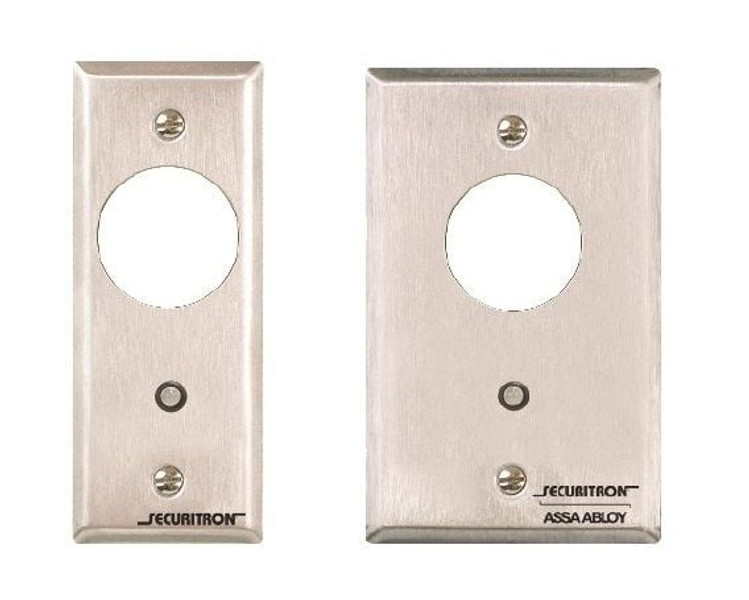

The MKC-KA from Securitron is a Mortise Cylinder for MK Series, Keyed Alike. Mortise Keyswitch supports electric lock control, alarm panel arming, reset and override when paired with any mortise cylinder 1-1/8" to 1-1/2".
Features:
- Bi-color LED provides visual feedback for status, enhancing user experience.
- Backing bracket permits integration with any 1-1/4" [32mm] or 1-1/8" [28mm] mortise cylinder (not included), allowing for flexibility in setups.
- Supports 1-1/2" [38mm] cylinder using spacer ring and backset, accommodating various locking needs.
- Additional switch position on backing bracket allows another switch to be activated by turning the key in the opposite direction.
- 5A rated plunger switch ensures reliable performance and longevity.
- Includes anti-tamper screws to provide enhanced security and protection against unauthorized access.
Technical Specifications
Product Type
Mortise cylinder for MK series keyswitch
Keying
Keyed-Alike (KA)
Length
1-1/8? (28.5 mm)
Finish
Satin chromium plated (26D / US26D)
Keyway
SC keyway
Material
Solid brass cylinder (typical internal) with chrome plating
Compliance
UL-listed hardware
Power
Supports 12 VDC or 24 VDC when used in keyswitch
LED Indicator
Bi-color LED feedback
Plunger Switch Rating
5 A plunger switch
Switch Type
SPDT momentary (standard)
Additional Position
Extra switch activation by opposite key turn
Spacer Support
Can support 1-1/2? cylinder with spacer/backset
Anti-tamper Hardware
Includes anti-tamper screws
Compatibility
MK series keyswitches
ANSI/BHMA Compliance
Meets MK series mounting specs
Warranty
Limited Lifetime Warranty
Application
- Electric lock control
- alarm panel arming/reset
- override
Installation
Mortise cylinder with keyswitch backing bracket
Cylinder Length Ext.
Supports up to 1-1/2? with spacer ring
Manual & Catalog
Available via Securitron support
Warranty
Limited Lifetime Warranty
