Description

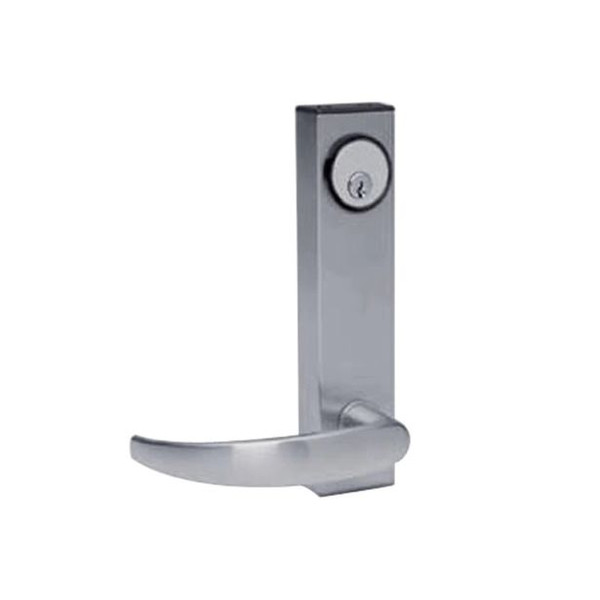

The 3080 Series Entry Trim provides outside activation for doors with any type of Adams Rite exit device and deadlatch. The locked handle is protected from vandalism and forced entry with a breakaway clutching mechanism.
Features:
- Curved (Standard)
- Satin Stainless (US32D)
- Cylinder Hole Optional (can be ordered with or without)
- Breakaway Clutch Mechanism, for vandalism and forced entry protection
- Returns within 1/2" of door face
- 3 lbs (1.36 kg)
Technical Specifications
Function
Fail‑Secure standard entry trim with curve lever
Compliance
ANSI/BHMA Grade1
Finish
Satin Stainless Steel (US32D / 630)
Handle Style
- Curve lever
- returns within ½″ of door face
Construction Material
Solid cast stainless steel
Non-Handed
Can be used on LH or RH doors
Breakaway Clutch
Protects lever from vandalism/forced entry
Cylinder Option
Optional mortise cylinder hole available
Escutcheon Dimensions
1‑3/8″ × 4″ sloping escutcheon
Door Compatibility
For narrow-stile doors & exit devices
Solenoid (E version)
Continuous-duty solenoid available
Electrical Option
Fail‑Secure (12VDC) or Fail‑Safe versions
Compatibility
Works with 4300/4500/4900/4781/8000/3000 Series
Cylinder Standard
Accepts 1‑5/32″ diameter MS® cam cylinder
Door Prep Templates
Available for standard & electrified versions
Finish Options
- US3
- US4
- 10B
- US32
- US32D available
Lever Return Distance
Within ½″ (12.7mm)
Pull Options
Designer pulls 3001/3002 available
Compatibility with Trim
Same core parts across lever styles
Vandal-Resistance
Clutch disengages under forced entry
Power Options
Add transformer / rectifier as needed (4603/4605/4606/PS‑1)
Warranty
5‑Year Limited
Warranty
5‑Year Limited Warranty
