Description

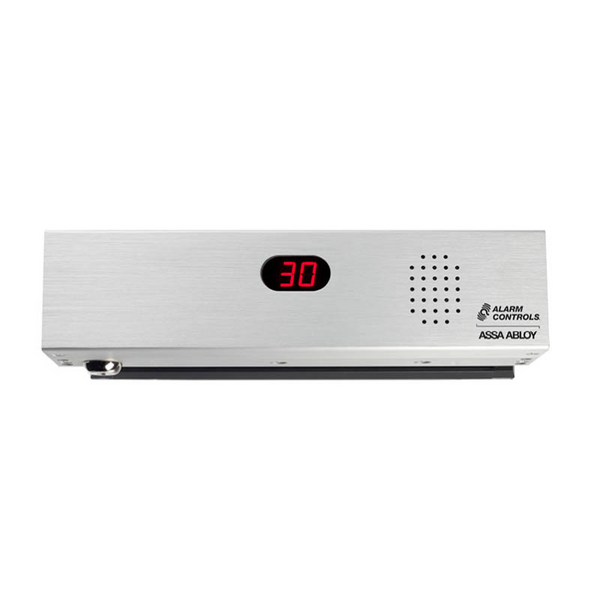

1200 Pound Delayed Egress Magnetic Lock, Standard Variant, UL & ULC
Features:
- Choice of English, French/English or Spanish/English voice message
- Digital countdown LED display
- Door prop alarm
- Energy savings mode
- Field configurable settings include: Voice message language, Choice of voice and alarm tone or alarm tone only, Bypass delay times 0, 10, 15, 30 seconds, Door movement activation, Auto or manual relock
- Integrated two function keyswitch; Bypass (REX) and alarm reset
Technical Specifcations
Holding Force
1 200 lb (˜5.3 kN)
Voltage
Auto-sensing 12/24 VDC
Current Draw (12 VDC)
- 825 mA max
- 262 mA energy-saving
Current Draw (24 VDC)
- 490 mA max
- 165 mA energy-saving
Relay Outputs
1 A @ 30 VDC
Tamper Switch
0.5 A @ 30 VDC
Temperature Range
0–50 °C (32–122 °F)
Certifications
- UL-294
- UL10C
Digital Display
Yes – countdown
Voice Alarm
English/Spanish/French selectable
Door Prop Alarm
Built-in
Delay Settings
- Nuisance: 0–3 s
- Bypass: 0–30 s
Warranty
Limited Lifetime Warranty
