HES

SKU 9600-630-LBSM 9600-630-LBSM

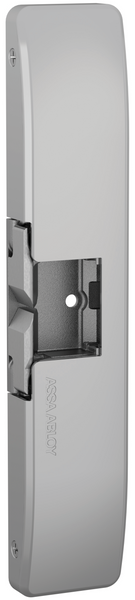

Surface Mounted Electric Strike, Latchbolt Strike Monitor, Satin Stainless Steel - 9600-630-LBSM

Product Rating Product Rating Product Rating Product Rating Product Rating 0 Reviews
Write a Review
Price:
$614.32
  • Weight:
    2.10 LBS
  • Shipping:
    Calculated at Checkout

Key features

Connector Type Plug-in
Holding Strength 2000 lb
Outdoor Rated Yes
Power Source Hardwired
Material Stainless Steel
Current 12v DC 450 mA
5-Year Limited Warranty
Sale assistant
Contact our Sales Team for a tailored experience
Sign In for Dealer Pricing Become a BLVS Customer

Description

The 9600 Series Electric Strike is a windstorm resistant, surface mounted electric strike designed to accommodate rim exit devices with a 3/4" throw Pullman latchbolt. All components are completely encased within its 3/4" thick stainless steel housing, so no cutting on the frame is required for installation. Simply place the electric strike on the surface of the frame, align it with the exit latchbolt and install. Adjustments have never been easier as the base is now separate from the cover. It is field selectable for fail secure or fail safe operation, and for 12 or 24 VDC.

The 9600 is a surface mounted electric strike designed with the strength and durability required to exceed the severe forces of ANSI Windstorm testing.

Features:

  • Installs in metal or wood frames (wood screws not included)
  • Separate base and decorative cover for easy adjustments
  • Stainless steel construction
  • Tamper resistant
  • Static strength 2,000 lbs
  • Dynamic strength 120 ft-lbs
  • Endurance 1,000,000 cycles
  • Field selectable fail safe/fail secure
  • Horizontal adjustability
  • Non-handed
  • Internally mounted solenoid
  • Accommodates up to 3/4" Pullman latch
  • Dual voltage 12 or 24 VDC

Technical Specifcations

Connector Type
Plug-in
Holding Strength
2000 lb
Outdoor Rated
Yes
Power Source
Hardwired
Material
Stainless Steel
Current 12v DC
450 mA
Current 24v DC
250 mA
Warranty
5-Year Limited Warranty
Frame Material
Metal|Wood
Latchbolt Accommodation
3/4-Inch
Tamper Resistant
Yes
RoHS Compliant
Yes
Finish
Satin stainless steel
Monitoring Options
Latchbolt Strike Monitor
Monitoring Type
Switch
Lock Type
Exit Device

Warranty

5-Year Limited Warranty

Datasheet
