Description

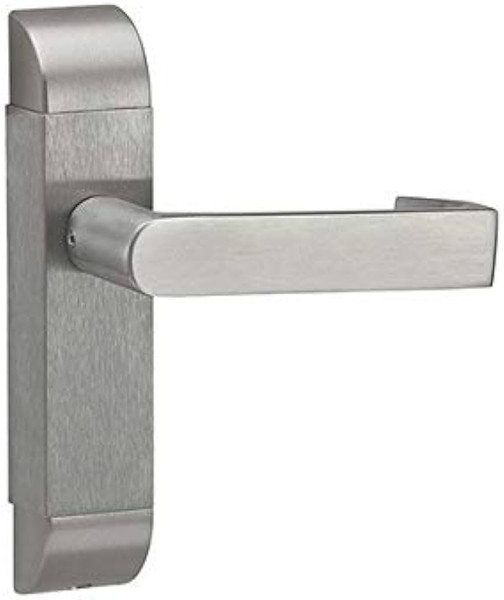

The 4600 Heavy Duty Designer Deadlatch Handles are designed to operate Adams Rite deadlatches and retrofit onto the 2190 Interconnected Deadbolt/Deadlatch. Offered in a wide range of lever designs and architectural finishes to match the clean lines of a narrow stile door.
Features:
- Handed, field-reversible
- 1-3/4" to 1-7/8"
- 1/4" square, heat-treated
- Cam Plug, Fasteners
- Easy installation
- 5 Years
Technical Specifications
Compatible Deadlatches
- 4300
- 4500
- 4900 Series
Trim Type
Round Lever
Finishing
Satin Stainless Steel (US32D / 630)
Material
Solid cast stainless steel
Compliance
BAA-compliant
Installation
- Shipped handed
- field reversible (except some types)
Operation Motion
Upward or downward motion
Adjustable Drive
Adjustable mechanism for escutcheon setback
Escutcheon Height
621⁄32″ (169.1mm)
Escutcheon Width
111⁄32″ (34.1mm)
Escutcheon Depth
1″ (25.4mm)
Projection
329⁄32″ (99.2mm)
Door Thickness
1¾″ to 1⅞″
Cam Plug Included
Yes—required for compatibility
Spindle Type
¼″ square heat-treated spindle
Cam Plug Attachment
Secured by cylinder setscrew & anti-rotation pins
Escutcheon Springs
- Two large helical compression springs
- hidden screws
Mounting Hardware
Included
Duty Rating
Heavy duty / HW weight class
Handing Change
Reversible via push-release cam design
Retrofit Capability
Retrofit onto 2190/2290 interconnected deadbolt/latch
Warranty
5‑Year Limited
Warranty
5‑Year Limited Warranty
