Description

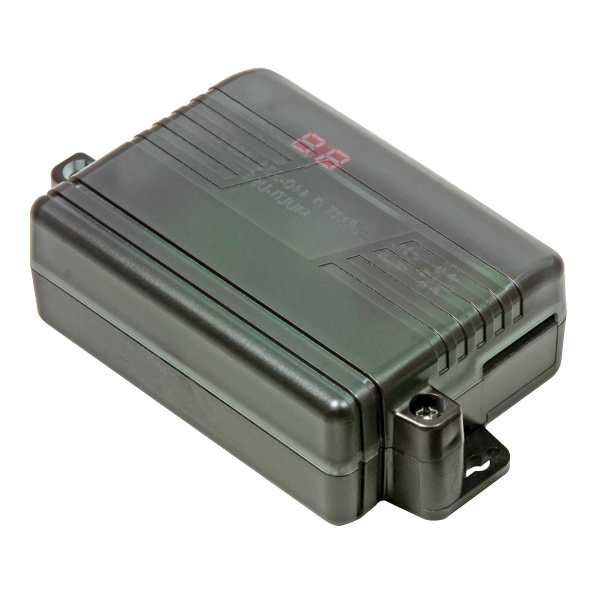

Introducing the Seco-Larm HL-951R2-SQ 1 Channel Receiver, designed to offer superior performance with innovative features that enhance reliability and convenience. This device uses advanced digital modulation at 917MHz, allowing for longer range, excellent signal penetration, and immunity to interference, making it an ideal choice for secure remote control applications. With its wide voltage range and easy programming, the HL-951R2-SQ is perfect for various installations.
Features:
- 917MHz Frequency ensures a robust connection and minimizes interference for reliable communication.
- Integrated PCB Antenna eliminates the need for external antennas, reducing vulnerability to damage and vandalism.
- Allows for up to 99 button codes per channel, enabling extensive control options.
- Available with either 1 or 2 channels to easily manage one or two devices.
- Visual feedback for RF reception and programming, aiding in quick troubleshooting.
- RF signal strength testing enables finding the optimal installation location for best performance.
Technical Specifications
Frequency
917MHz
Voltage
- 10~24 VAC
- 9~48 VDC
Display Type
Digital 2-Digit 7-Segment LED
Operating Temperature
-40°~167° F (-40°~75° C)
Color
Black
Current
- Standby: 8mA@12VDC / 5mA@24VDC / 2mA@48VDC
- Active: 100mA@12VDC / 50mA@24VDC / 25mA@48VDC per channel
Contact Type
Relay : Form C 10A@14VDC
Channels
2
Compliance
- RoHS
- FCC
Dimensions
3-15/16″x2-1/2″x1-3/16″ (100x63x30 mm)
Warranty
1 Year Warranty
