Description

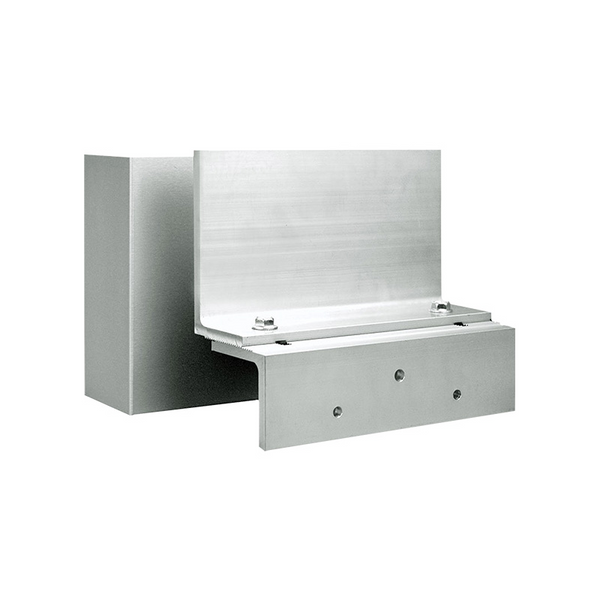

For M82 SS
Features:
- Enables face-mounted Magnalock units (“F”-type, 8.5″ length) to be installed on self-closing in-swing doors
- Offers 1¼″ (31.75 mm) side-to-side adjustment to align the lock with the armature plate precisely .
- Comes with a larger decorative cover plate to conceal mounting hardware and provide a clean look .
- Compatible with M32, M62, M82, and MM15 series Magnalocks via specific ZA variants (ZA-32/62 and ZA-82) .
- Built strong to support the heavy Magnalock while maintaining full adjustability .
- Covered by Securitron’s lifetime, no-fault parts replacement program .
Technical Specifications
Series
ZA-82 Adjustable Z-Bracket
Compatibility
M82 Magnalocks
Function
Inswing door armature mount
Material
Aluminum alloy
Finishing
Satin stainless anodized
Color
Satin Silver
Adjustment Range
- ±1¼? lateral
- 2¼?–3½? depth
Dress Cover
Oversized
Load Bearing
Heavy-duty aluminum
Mounting Method
Sex-bolt & screws
Fasteners Included
Two 5/16? bolts etc.
Installation
PDF installation procedures
Structural Support
Teeth locking mechanism
Seal-ability
Not sealed
Compliance
MagnaCare lifetime warranty
Warranty
Limited Lifetime Warranty
Fire Rating
3-hour match to lock
Operating Temp
–40 °F to +140 °F
Packaged Dimensions
8½? × width
Use Case
Inswing doors
Ordering Code
ZA-82SS
Documentation
Manual PDF
Warranty
Limited Lifetime Warranty
