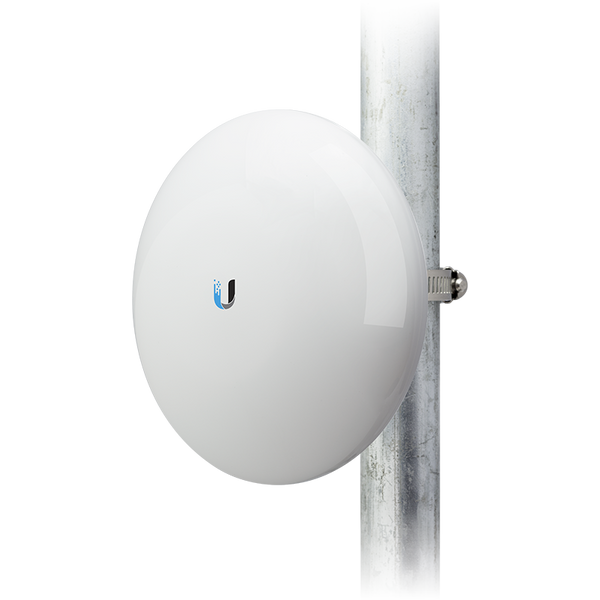

Nanobeam airMAX AC CPE - NBE-2AC-13-US

Stock Availability

in stock

Ubiquiti Inc

SKU NBE-2AC-13-US NBE-2AC-13-US

Nanobeam airMAX AC CPE - NBE-2AC-13-US

Product Rating Product Rating Product Rating Product Rating Product Rating 0 Reviews
Write a Review
Price:
$99.00
  • Weight:
    2.43 LBS
  • Shipping:
    Calculated at Checkout

Key features

Ambient operating humidity 5 to 95% noncondensing
Ambient operating temperature -40 to 80° C (-40 to 176° F)
Channel sizes PtP Mode: 10/20/40 MHz
Channel sizes PtPM Mode: 10/20/40 MHz
Dimensions 189 x 189 x 125 mm (7.4 x 7.4 x 4.9")
ESD/EMP protection Air/contact: ± 24kV
Sale assistant
Contact our Sales Team for a tailored experience
(718) 298-4000 Email us
Adding to cart… The item has been added
?Special Order Information
Sign In for Dealer Pricing Become a BLVS Customer
SIGN IN

Description

UISP-ready, 2.4 GHz WiFi radio that can serve as a point-to-multipoint station.

Technical Specifications

Ambient operating humidity
5 to 95% noncondensing
Ambient operating temperature
-40 to 80° C (-40 to 176° F)
Certifications
  • CE
  • FCC
  • IC
Channel sizes
PtP Mode: 10/20/40 MHz
Dimensions
189 x 189 x 125 mm (7.4 x 7.4 x 4.9")
ESD/EMP protection
Air/contact: ± 24kV
Enclosure material
UV-stabilized plastic
Gain
13 dBi
LEDs
  • Power
  • Ethernet
  • (4) signal strength
Max. VSWR
1.5:1
Max. power consumption
7.5W
Mounting
Pole mount kit (Included)
Networking interface
(1) GbE RJ45 port
Polarization
Dual linear
Power method
  • Passive PoE 2-pair (4
  • 5+; 7
  • 8 return)
Power supply
  • 24V
  • 0.5A gigabit PoE adapter (Included)
Salt fog test
  • IEC 68-2-11 (ASTM B117)
  • Equivalent: MIL-STD-810 G method 509.5
    • Supported voltage range
    20–27V DC
    Temperature shock test
    IEC 68-2-14
    US/CA
    U-NII-3: 5725 - 5850 MHz
    USA
    2412 - 2462 MHz
    UV test
    IEC 68-2-5 at 40° C (104° F)
    Vibration test
    IEC 68-2-6
    Weight
    530 g (1.2 lb)
    Wind loading
    45.4 N at 200 km/h (10.2 lbf at 125 mph)
    Wind survivability
    200 km/h (125 mph)
    Wind-driven rain test
  • ETS 300 019-1-4
  • Equivalent: MIL-STD-810 G method 506.5
    • Worldwide
    5150 - 5250 MHz

    Technical Specifications

    Ambient operating humidity
    5 to 95% noncondensing
    Ambient operating temperature
    -40 to 80° C (-40 to 176° F)
    Certifications
    • CE
    • FCC
    • IC
    Channel sizes
    PtP Mode: 10/20/40 MHz
    Dimensions
    189 x 189 x 125 mm (7.4 x 7.4 x 4.9")
    ESD/EMP protection
    Air/contact: ± 24kV
    Enclosure material
    UV-stabilized plastic
    Gain
    13 dBi
    LEDs
    • Power
    • Ethernet
    • (4) signal strength
    Max. VSWR
    1.5:1
    Max. power consumption
    7.5W
    Mounting
    Pole mount kit (Included)
    Networking interface
    (1) GbE RJ45 port
    Polarization
    Dual linear
    Power method
    • Passive PoE 2-pair (4
    • 5+; 7
    • 8 return)
    Power supply
    • 24V
    • 0.5A gigabit PoE adapter (Included)
    Salt fog test
  • IEC 68-2-11 (ASTM B117)
  • Equivalent: MIL-STD-810 G method 509.5
    • Supported voltage range
    20–27V DC
    Temperature shock test
    IEC 68-2-14
    US/CA
    U-NII-3: 5725 - 5850 MHz
    USA
    2412 - 2462 MHz
    UV test
    IEC 68-2-5 at 40° C (104° F)
    Vibration test
    IEC 68-2-6
    Weight
    530 g (1.2 lb)
    Wind loading
    45.4 N at 200 km/h (10.2 lbf at 125 mph)
    Wind survivability
    200 km/h (125 mph)
    Wind-driven rain test
  • ETS 300 019-1-4
  • Equivalent: MIL-STD-810 G method 506.5
    • Worldwide
    5150 - 5250 MHz
