Description

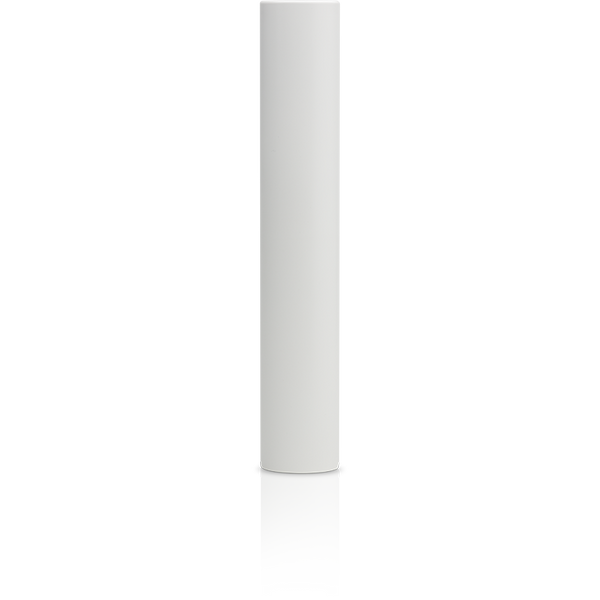

5 GHz, 120º, 16 dBi or 90º, 17 dBi antenna for sector coverage in Point-to-MultiPoint (PtMP) networks.
Technical Specifications
Cross-pol Isolation
22 dB Min.
Dimensions
367 x 63 x 41 mm (14.4 x 2.5 x 1.6")
ETSI Specification
EN 302 326 DN2
Electrical Beamwidth
8°
Electrical Downtilt
4°
Frequency Range
4.90 - 5.85 GHz
Gain
16.1 - 17.1 dBi
HPOL Beamwidth
72° (6 dB)
Max. VSWR
1.5:1
Mounting
- Universal Pole Mount
- RocketM Bracket
- and Weatherproof RF Jumpers Included
Polarization
Dual-Linear
VPOL Beamwidth
93° (6 dB)
Weight
1.1 kg (2.4 lb)
Wind Loading
26 N @ 160 km/h (6 lbf @100 mph)
Wind Survivability
200 km/h (125 mph)
