Description

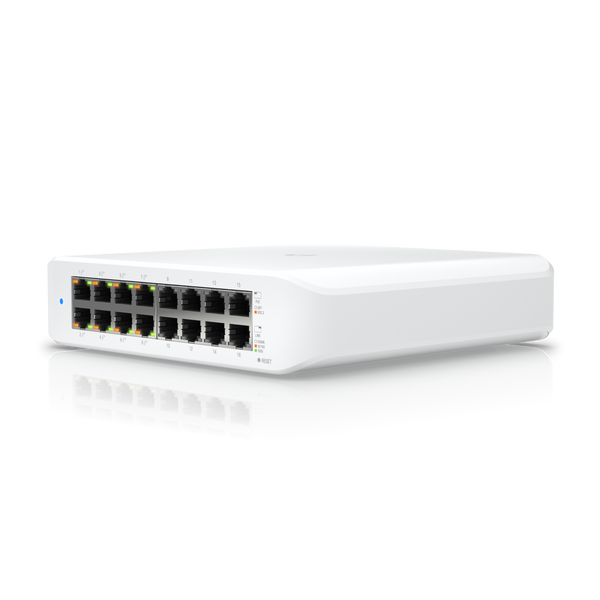

A wall-mountable, 16-port, Layer 2 PoE switch with a fanless cooling system.
Technical Specifications
Ambient operating humidity
10 to 90% noncondensing
Ambient operating temperature
-15 to 40° C (5 to 104° F)
Button
Factory reset
Certifications
- CE
- FCC
- IC
Dimensions
192 x 185 x 44 mm (7.6 x 7.3 x 1.7")
Enclosure material
Polycarbonate
Forwarding rate
23.808 Mpps
Layer 2 features
IGMP snooping
Layer 3 features
–
Management interface
Ethernet In-Band
Max. PoE wattage per port by PSE
PoE+: 30W
Max. power consumption
15W (Excluding PoE output)
Networking interface
(16) GbE RJ45 ports
PoE interface
- (8) PoE/PoE+ (Pins 1
- 2+; 3
- 6-)
Power method
- Universal input
- 100—240V AC
Power supply
- AC/DC
- internal
- 60W
Switching capacity
32 Gbps
available PoE
45W
non-blocking throughput
16 Gbps
Weight
1.2 kg (2.6 lb)
Total available PoE
45W
Total non-blocking throughput
16 Gbps
