Description

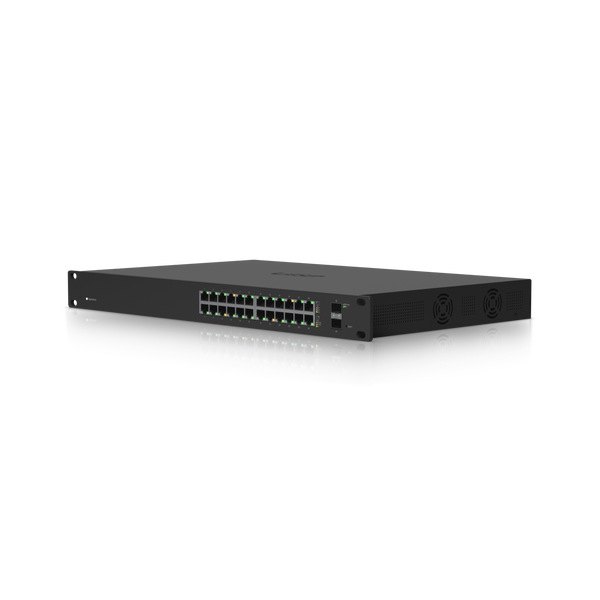

Layer 2/3, PoE switch with (24) Gigabit RJ45 ports, (2) SFP ports, and a 250W power supply.
Technical Specifcations
Ambient operating humidity
5 to 95% noncondensing
Ambient operating temperature
-5 to 40° C (23 to 104° F)
Button
Factory reset
Certifications
- CE
- FCC
- IC
Dimensions
485 x 43.7 x 285.4 mm (19.1 x 1.7 x 11.2")
ESD/EMP protection
Air/contact: ±24 kV
Forwarding rate
38.69 Mpps
LEDs
- Ethernet ports: PoE
- speed/link/activity
Management interface
- (1) RJ45 serial port
- Ethernet In/Out-Band
Max. PoE wattage per portby PSE
PoE+: 34.2W
Max. power consumption
30W (Excludes PoE output)
Networking interface
(24) GbE RJ45 ports
PoE interface
- (24) PoE/PoE+ 2-pair (Pins 1
- 2+; 3
- 6-)
- (24) 24V DC passive PoE 2-pair (Pins 4
- 5+; 7
- 8-)
Power method
- 100-240V AC
- universal input
- 50/60 Hz
Power supply
- AC/DC
- internal
- 250W
Rackmount
- Yes
- 1U
Shock and vibration
ETSI300-019-1.4 Standard
Switching capacity
52 Gbps
PoE available
250W
non-blocking throughput
26 Gbps
Voltage range PoE mode
Weight
4.7 kg (10.4 lb)
Total PoE available
250W
Total non-blocking throughput
26 Gbps
