Description

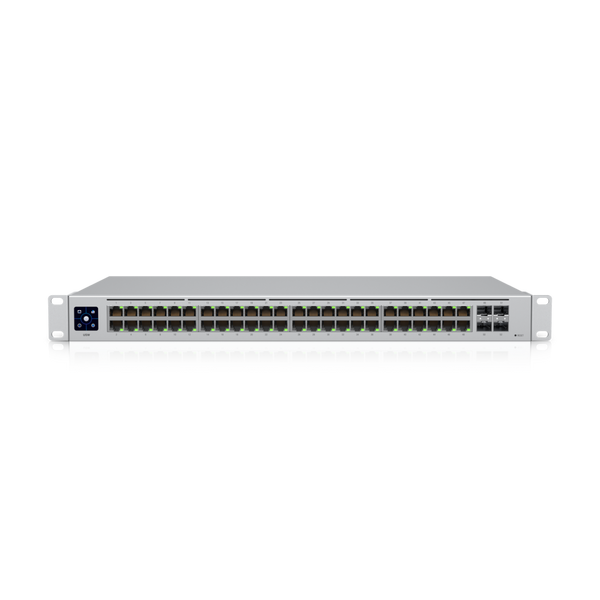

A 48-port, Layer 2 switch with a silent, fanless cooling system.
Technical Specifcations
Ambient operating humidity
10 to 90% noncondensing
Ambient operating temperature
-15 to 40° C (5 to 104° F)
Button
Factory reset
Certifications
- CE
- FCC
- IC
Dimensions
442 x 285 x 44 mm (17.4 x 11.2 x 1.7")
ESD/EMP protection
- Air: ± 16kV
- contact: ± 12kV
Enclosure material
SGCC steel
Forwarding rate
77.376 Mpps
LCM display
(1) 1.3" touchscreen
Layer 2 features
IGMP snooping
Layer 3 features
–
Management interface
Ethernet In-Band
Max. power consumption
40W
Networking interface
(48) GbE RJ45 ports
Power method
- Universal input
- 100—240V AC
- 50/60 Hz
Power supply
- AC/DC
- internal
- 60W
Supported voltage range
100—240V AC
Switching capacity
104 Gbps
non-blocking throughput
52 Gbps
Weight
Without mounting brackets: 3.9 kg (8.6 lb)
Total non-blocking throughput
52 Gbps
