Description

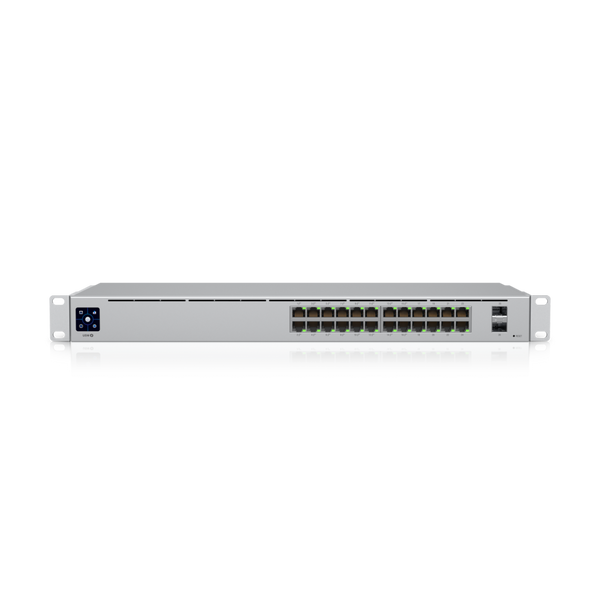

A 24-port, Layer 2 PoE switch with a fanless cooling system.
Technical Specifications
Ambient Operating Humidity
10 to 90% noncondensing
Ambient Operating Temperature
-5 to 40° C (23 to 104° F)
Button
Factory reset
Certifications
CE, FCC, IC
Dimensions
442 x 200 x 44 mm (17.4 x 7.9 x 1.7")
ESD/EMP Protection
Air: ± 16kV, contact: ± 12kV
Enclosure Material
SGCC steel
Forwarding Rate
38.69 Mpps
LCM Display
(1) 1.3" touchscreen
Layer 2 Features
IGMP snooping
STP / RSTP with priorities and port-level disable
Port isolation
Storm control
Voice VLAN
Port mirroring
LACP port aggregation
Multicast / broadcast rate limiting
MAC address blocking
Flow control
802.1X control
Jumbo frames
Proprietary loop protection
DHCP snooping / guarding
Egress rate limit
LLDP-MED
Port restricted by MAC
Device isolation with ACLs
Layer 3 Features
–
Management Interface
Ethernet In-Band
Max. PoE Wattage Per Port By PSE
PoE+: 32W
Max. Power Consumption
25W (Excluding PoE output)
Networking Interface
(24) GbE RJ45 ports
(2) 1G SFP ports
PoE Interface
(16) PoE/PoE+ (Pins 1, 2+; 3, 6-)
Power Method
Universal input, 100—240V AC, 50/60 Hz
Power Supply
AC/DC, internal, 120W
Shock And Vibration
ETSI300-019-1.4 Standard
Supported Voltage Range
100—240V AC
Switching Capacity
52 Gbps
Total Available PoE
95W
Total Non-blocking Throughput
26 Gbps
Voltage Range PoE Mode
PoE: 44—57V
PoE+: 50—57V
Weight
Without mounting brackets: 3 kg (6.6 lb)
With mounting brackets: 3.1 kg (6.8 lb)
Available PoE
95W
Non-blocking Throughput
26 Gbps
