Milwaukee®

SKU 2216-20 2216-20

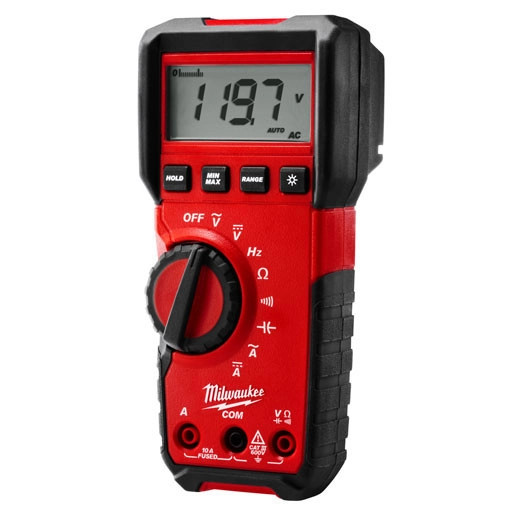

Milwaukee Digital Multimeter 2216-20

Product Rating Product Rating Product Rating Product Rating Product Rating 0 Reviews
Write a Review
Price:
$211.02
  • Weight:
    1.38 LBS
  • Shipping:
    Calculated at Checkout

Key features

Tool Warranty 5 Years
Battery Type Alkaline (AA)
Display Type Standard LCD
Switch Type Dial
Length 6-1/2"
TRMS Yes
5 Years Warranty
Sale assistant
Contact our Sales Team for a tailored experience
Sign In for Dealer Pricing Become a BLVS Customer

Description

Heavy duty True-RMS meter for professional residential, commercial and industrial applications. The perfect tool for the professional commercial or industrial electrician; includes the features that are needed to get the job done in the field, on-site or in the plant. Milwaukee 2216-20 Digital Multimeter features: True RMS measurement to accurately measure all applications; CATIII 600V for increased safety in demanding electrical environments; AC voltage range of 6 millivolts to 600 volts; DC voltage range of 600 millivolts to 600 volts DC; Resistance measurement from 600 ohms to 40 Mohm; frequency measurement from 10Hz to 50 kilohertz; detects continuity at less than 30 ohms; Current measurement to 10amps AC/DC; hold function, min/max function and digital bar graph readout; black on white display and backlight for easier reading; rugged over-molding for improved durability and user grip; proprietary rail system for mounting accessories; includes one (1) test lead set, two (2) AA batteries, and manual; covered by 5 year warranty. Nothing but HEAVY DUTY.

Features:

  • True-RMS for accurate measurement in all applications
  • Wide Voltage range to 600 AC /DC volts
  • Resistance range from 600 ohm to 40 Mohm
  • Auto Range to mV
  • Frequency measurements from 10Hz to 50kHz
  • Current Measurement to 10A AC/DC
  • Rugged over-molding increases durability and user grip
  • CAT III 600V for increased safety
  • Capacitance to 1000 µF

Technical Specifcations

Tool Warranty
5 Years
Battery Type
Alkaline (AA)
Display Type
Standard LCD
Switch Type
Dial
Length
6-1/2"
TRMS
Yes
Current AC DC
10.00A
Frequency
2.00 Hz - 50.00 kHz
Resistance
40MΩ
Continuity
Audible
Capacitance
  • 1
  • 000μF
Safety Category Rating
CAT III 600V
Voltage AC
6.00mV - 600V
Voltage DC
600.0mV - 600V
Backlight
Yes
HOLD MIN MAX
Yes
Bargraph
Yes
Rugged Overmolding
Yes
Accessory Attachment
Magnetic Meter Holder
Calibration Needed
Yes - Recommend calibration service once every year

Warranty

5 Years Warranty
