Description

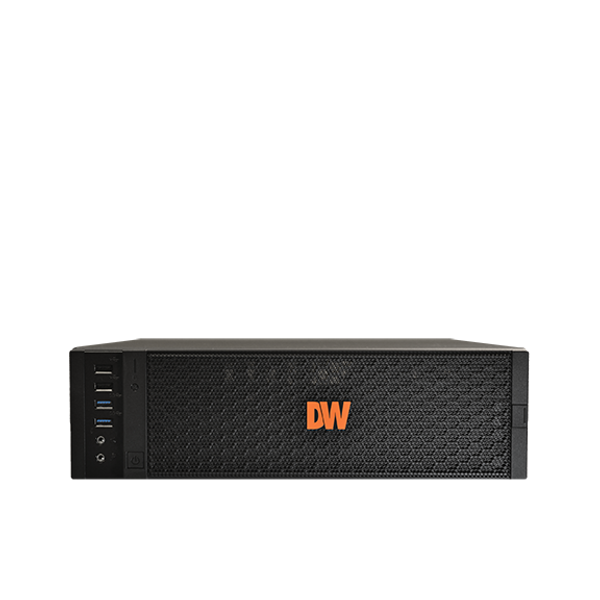

When paired with a system running DW Spectrum, this Blackjack Ai Appliance recognizes objects and people in all connected streams by combining advanced algorithms and machine learning to analyze real-time video streams and provide comprehensive video analytics in a user-friendly, scalable solution. The appliance is NDAA and TAA compliant, includes Windows 11 OS on a separate SSD and supports up to 64 secondary streams. Hardware features include an Intel 12th generation processor, dual Ethernet ports, 32GB RAM and an NVIDIA A2200 12GB video card. The appliance comes preloaded with four complimentary DW AI Server licenses and has a 5-year limited warranty.
Features:
- Deep learning analytics on an appliance, connected to any DW Spectrum system for any connected stream
- Hosting Intelligent Video Analytics AI software deep learning and color filter
- Providing Server-side analytics to non-analytic cameras on any DW Spectrum system
- Analytics by Deep Learning engine
- Up to 64 secondary streams
- 12th Gen Intel Core i7 processor
- 1x mini Display Port for system configuration
- 1 x 1Gb Ethernet, 1x 2.5Gb Ethernet ports
- Windows 11 IoT LTSC on separate SSD
- One (1) 4-channel DW Ai Server licenses included (DW-DWAiSLSC004)
- No annual maintenance fees
- USB mouse and keyboard included
- Designed, assembled and tested in the U.S.A.
- NDAA/TAA compliant
- 5 Years limited warranty
Technical Specifications
Accessories
- Keyboard
- Mouse
Ai Configuration Tool Supported OS
Cross-platform - Windows and Linux Ubuntu
CPU
Intel i7® processor
Certification
- CE
- FCC
- NDAA
- ONVIF Conformant
- TAA Compliance
Ethernet Ports
- 1x 1G Ethernet (RJ45)
- 1x 2.5Gb Ethernet (RJ45)
Form Factor
Slim Desktop
Included DW Ai Server Licenses
4 channel (DW-DWAiSLSC004)
Local Video Outputs
- 1 display output at a time
- 1x mini Display Port
- For initial system configuration
Max # Of Analytic Streams (secondary)
Up to 64
Memory
32GB
OS On SSD
480GB SSD
Operating System
Windows
Operating Temperature And Humidity
- 20 ~ 90% RH
- 41 ~ 104 °F (5~40 °C)
Performance Features
- Analytics appliance for lower deployment cost
- Deep learning classifiers and logical rules engine
- Server-side analytics for non-analytic cameras
Power Consumption
- 300W
- A UPS is recommended
Preloaded Analytic Software
DW Ai Server
Recorder Dimensions (H X W X D)
- Desktop: 3.88” x 13.1” x 15.8” (98.5 x 334 x 402 mm)
- Standing: 13.1” x 3.88” x 15.8” (334 x 98.5 x 402 mm)
Storage Capacity
No HDD
System Operation
- Graphical user interface (GUI)
- Remote via DW Spectrum
- USB mouse (included)
USB Interface
Yes
Video Card
NVIDIA RTX A2000 12GB
Video Compression
- H.264
- H.265
Warranty
Limited 5-Year Manufacturer Warranty
Weight (barebone, HDD Not Included)
15.65 lbs (7.09 kg)
Warranty
Limited 5-Year Manufacturer Warranty
