Klein Tools

SKU VDV500-705 VDV500-705

Tone & Probe Test and Trace Kit - VDV500-705

Product Rating Product Rating Product Rating Product Rating Product Rating 0 Reviews
Write a Review
Price:
$70.00
  • Weight:
    0.70 LBS
  • Shipping:
    Calculated at Checkout

Key features

Batteries 4 x AAA
Weight 10.1 oz (286 g)
Type Tone Generator Tracing Probe
Material ABS
Overall Length 10.6" (26.9 cm)
Overall Height 1.6" (4.1 cm)
Sale assistant
Contact our Sales Team for a tailored experience
Sign In for Dealer Pricing Become a BLVS Customer

Description

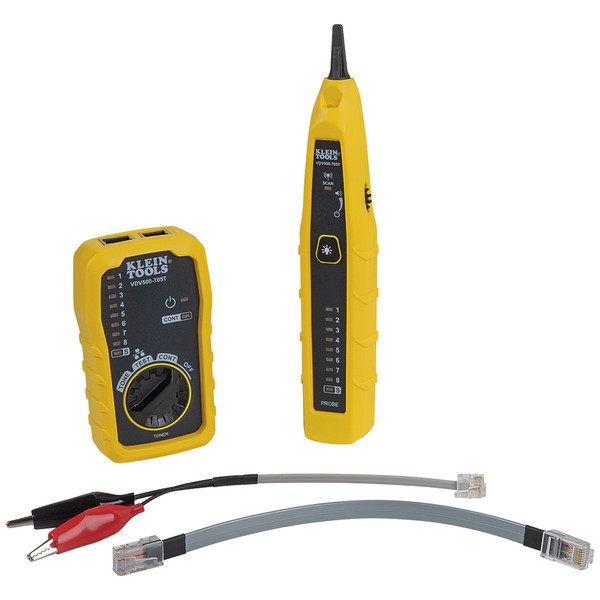

The Tone & Probe Test and Trace Kit provides simple toning and tracing of non-energized wire. The easy-to-use tone generator traces wire when used with the included probe. Alligator clips are provided for unterminated wires and an RJ45 to RJ45 cable to tone or test data cables. The responsive probe is a tone tracer with a durable, non-metallic, conductive tip, a speaker with audible output and headphone jacks for use in noisy environments (headphones not included). The worklight on the probe illuminates dark spaces. The toner and probe together perform pin to pin wire map test.

Features:

  • Simple analog tone generator and wire tracing probe for open-ended non-active wire runs
  • Responsive probe with durable, non-metallic, conductive tip
  • Alligator clips for unterminated wires
  • RJ45 to RJ45 test cable
  • Toner and probe together perform pin to pin wire map test
  • Work light on probe tip for use in dark spaces
  • Adjustable volume control
  • AAA batteries (included)
  • Replaceable test cables available (Cat. No. VDV770-855)
  • Headphone jack for noisy environments (headphones not included)
    • Warnings:

      • Carefully read all instructions.
      • Read all safety information before using.
      • Do NOT use on energized circuits.
      • Do NOT use on energized circuits.
      • Do not use instruments if damaged in any way.
      • Turn off instrument and disconnect all test leads before attempting to replace batteries.
      • Do not open the case, other than the battery compartment.
      • Battery door must be in place and secure before you operate.

    Technical Specifcations

    Batteries
    4 x AAA
    Standard
    • REACH
    • RoHS3
    • CE-EMC
    Weight
    10.1 oz (286 g)
    Type
    Tone Generator Tracing Probe
    Material
    ABS
    Overall Length
    10.6" (26.9 cm)
    Included
    • Tester/Tracer
    • RJ45 Cable
    • RJ12 and Alligator Clip Cable
    • Batteries
    Overall Height
    1.6" (4.1 cm)
    Special Features
    • Alligator Clips
    • RJ11 Plug
    • RJ45 to RJ45 Test Cable
    Application
    Wire Toning and Tracing
    Overall Width
    6.9" (17.5 cm)
    Style_Name
    Tone & Probe Test and Trace Kit
    Battery Type
    Alkaline
