Description

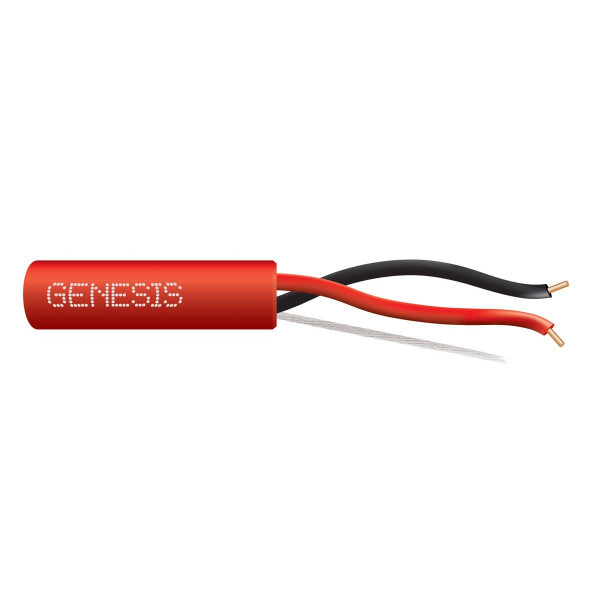

Genesis® Plenum Rated Unshielded Fire Alarm Cable features the following quality and convenience characteristics:
- Bare Copper conductors for excellent conductivity and low voltage drop.
- Low-Smoke PVC insulation.
- Plenum PVC jacket.
- Durable rip cord for efficient jacket stripping and removal.
- Countdown® Length Markings for easy tracking of usage and remaining cable.
- Rated for 300 Volts
- Rated for -20 °C to 75 °C.
Technical Specifications
Cable Length
500ft
Cable Listing
CL3P, FPLP, FT6
Cable Rating
Plenum
Color
Red
Conductor Count
2
Conductor Material
Bare Copper
Conductor Size
14AWG
Connector On First End
Bare Wire
Connector On Second End
Bare Wire
Core/Cladding Diameter
14/2
Device Supported
Fire Alarm
Jacket Material
LS PVC
Material
PVC
Number Of Conductors
2
Number Of Pairs
1
Packaging
Reel
Shielding
Unshielded
Stranding
Solid
Weight (Approximate)
32.60 lb
