Description

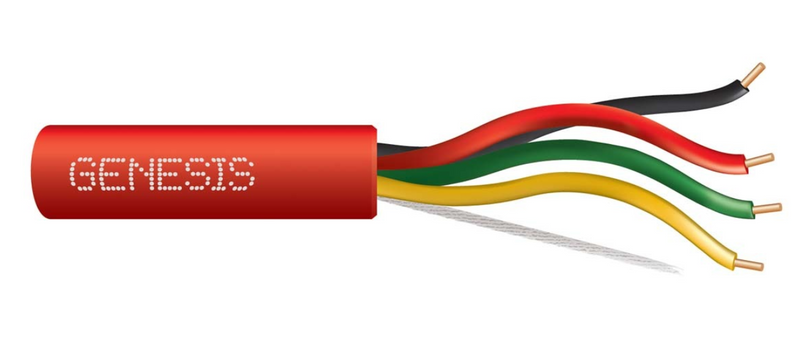

Genesis Fire Alarm Cables ensure uninterrupted fire protection. Built to exceed the demands of rigorous fire safety codes and regulations, UL listed, and Made in the USA
Features:
- Low-smoke CMP/FT6 rating—approved for use in air-handling spaces
- Solid copper core plus LS PVC insulation under a plenum PVC jacket
- Built-in ripcord for fast, clean jacket access—no nicked conductors
- Sequential footage printing improves measuring and reduces scrap
- Withstands −20 °C to 75 °C; 300 V for dependable service
- Installer-friendly for security sensors, HVAC controls, and paging
Technical Specifications
Color
Red
Cable Length
1000ft
Package Type
Reel
American Wire Gauge
18AWG
Conductor Type
Solid Bare Copper
CAT
CL3P FPLP
Jacket Type
PVC
Shield Type
Shielded
Voltage
300V
Number of Conductors
2
Stranding
Solid
Nominal Weight
19lbs/1000ft
Compliance
- NFPA 262
- CSA C22.2 No. 2556
- UL444
- UL1424
- UL13
- REACH/RoHS
Cable Type
Fire Alarm Plenum Shielded Cable
