Description

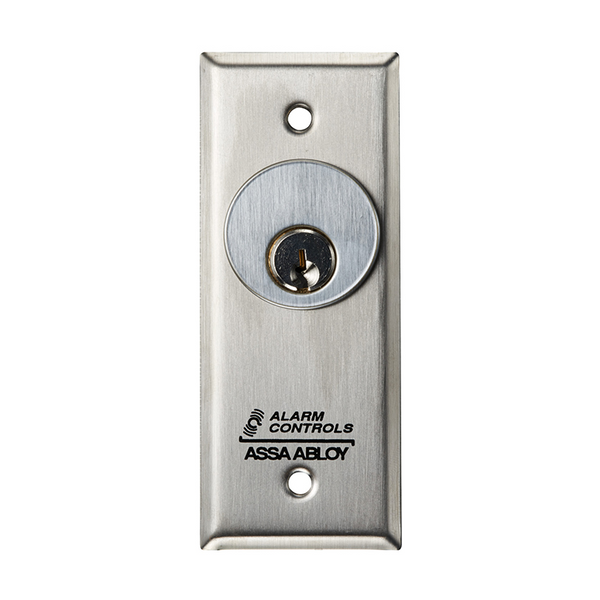

Single Gang SS Wall Plate, SPDT Momentary Action Switch
Features:
- Stainless steel wall plate accepts standard 1-1/8in mortise cylinder
- Tamper-proof and slotted head screws included
- Mortise Cylinders not included, available separately (CY-1, CY-1A)
- Momentary or alternate switch
- SPDT or DPDT
- No LED, green LED, green and red LEDs,
Technical Specifications
Switch Form
SPDT
Action
Momentary
Plate Size
Single gang (1.75in wide)
Material
Stainless steel (430 grade)
Finish
Brushed satin stainless
Contact Rating
4 A @ 28 V DC
LED Ready
12 or 24 V AC/DC
Switch Depth
1.25in behind plate
Switch Leads
8in colored leads
Cylinder Range
Supports 1?in–1¼in mortise cylinders
Hardware
Tamper-proof slotted screws
Operating Range
+15 °F to +120 °F
Warranty
Limited Lifetime Warranty
Warranty
Limited Lifetime Warranty
