Description

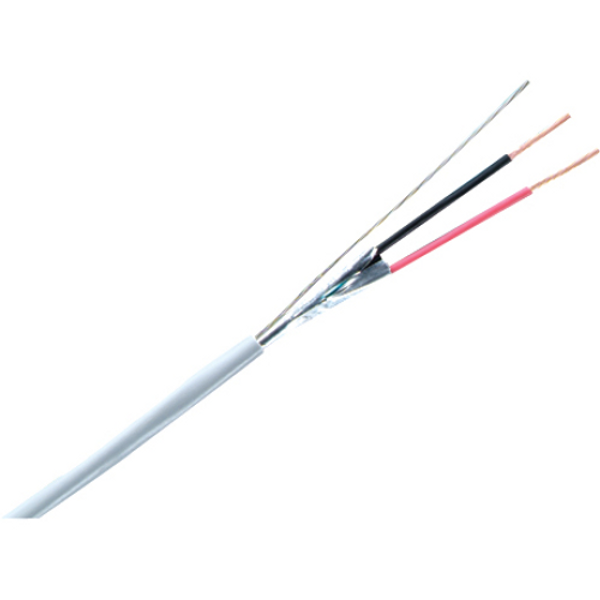

Genesis Building Automation Cables deliver reliable high-speed data transmission and optimized performance for today’s smart building networks. Designed for the Level IV LonWorks protocol.
Features:
- Al/PET overall shield + drain wire blocks EMI/RFI interference
- Plenum CMP/FT6 certification—ready for air-handling spaces
- Ripcord and countdown footage print speed pulls and terminations
- Reliable communications for alarms, intercoms, and control lines
- Withstands −20 °C to 75 °C; 300 V for long-term dependability
- Clear print legend aids quick identification and labeling
Technical Specifications
Color
White
Cable Length
1000ft
Package Type
Pull Box
American Wire Gauge
22AWG
Conductor Type
Solid Bare Copper
Number of Pairs
1Pair
Jacket Type
PVC
Shield Type
Shielded
Voltage
300V
Number of Conductors
2
Stranding
7Strand
Nominal Weight
20.3lbs/1000ft
Compliance
- NFPA 262
- CSA C22.2 No. 2556
- UL444
- UL1424
- UL13
- REACH/RoHS
Cable Type
CM Plenum Cable
