Description

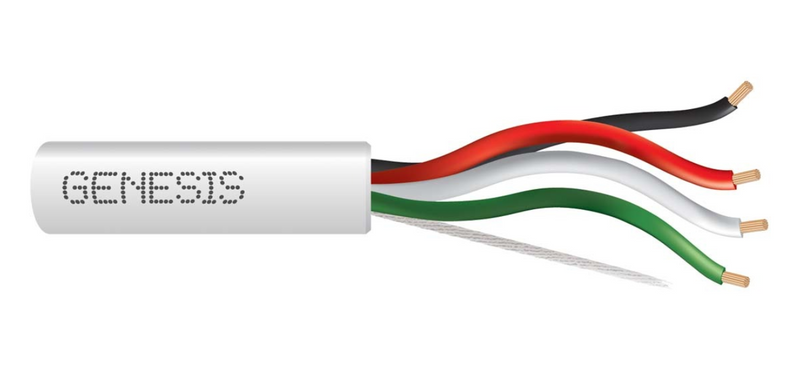

Genesis Shielded Multiconductor Cables offer a versatile solution for various applications. These shielded cables minimize electrical noise and interference to protect sensitive signals.
Features:
- Plenum-Safe CMP/FT6 Low-Smoke Jacket
- Approved for Air-Handling Spaces
- Reliable Performance in Demanding Pathways
- UL/ETL Compliance
- Countdown Footage for Easy Measuring
- Cost-Effective, Code-Compliant Wiring
Technical Specifications
Color
Natural
Cable Length
1000ft
Package Type
Pull Box
American Wire Gauge
22AWG
Conductor Type
Stranded Bare Copper
CAT
FT6
Jacket Type
PVC
Shield Type
Shielded
Voltage
300V
Number of Conductors
8
Stranding
7Strand
Nominal Weight
29.8lbs/1000ft
Compliance
- NFPA 262
- CSA C22.2 No. 2556
- UL444
- UL1424
- UL13
- REACH/RoHS
Cable Type
CM Plenum Cable
