Description

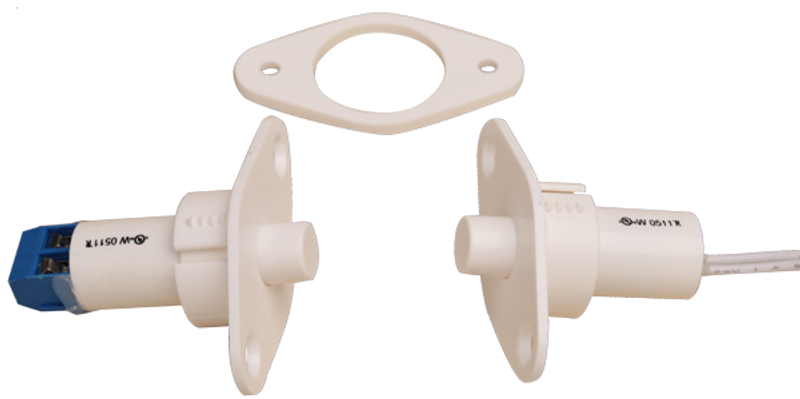

The PB-52TC-WH is a push-button reed switch, commonly used as a door contact in alarm systems.
Features:
- Closed loop, normally open reed form
- Designed for use with DMP XT and XR series panels
- Application: Door contact in alarm systems, particularly for DMP XT and XR series panels
- Designed for long life using reed technology, ideal for replacing old mechanical contacts
- Includes screws and spacers, connects in the closed loop of an alarm system
Technical Specifications
Color
White
Quantity
10 Pack
Operation Gap
NA
Loop Type
Closed
Reed Form
Normally Open
Max Framerate
10
Coil Resistance
100
Voltage
AC110/DC100
Current
0.5
Operating Temperature
-40°C to +60°C
Compliance
- CE
- RoHS
- CUL US Listed
