Description

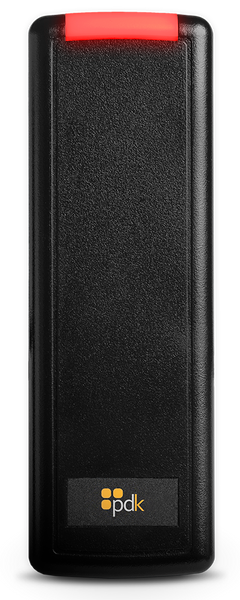

The RMB Red Mullion Reader is a multi-technology OSDP BLE reader for secure access control. It supports mobile credentials and traditional card formats. OSDP communication enhances security and interoperability. Ideal for modernizing doors with advanced, encrypted access technology.
Features:
- Red mullion reader supports multi-technology credentials and OSDP encryption.
- BLE capability allows the use of mobile credentials via smartphones.
- Slim design installs easily on door frames and narrow mullions.
- LED indicators provide clear visual feedback to users.
- Ideal for modern, secure access control systems needing mobile-ready readers.
Technical Specifications
Max Read Range
125kHz up to 4in
Operating Temperature
-31o ~ +150o F or -35o ~ +66oC
Operating Humidity
0 - 95% non-condensing
IP Rating
IP55
Voltage
5 - 16VDC
Current
106mA
Compliance
- FCC
- IC
- CE
- UL 294
- EN 302291
- EN 301489
- EN 300330
- EN 50130-4
- IP55
- BIS IS 13252
Warranty
Limited Lifetime
Warranty
Limited Lifetime Warranty
