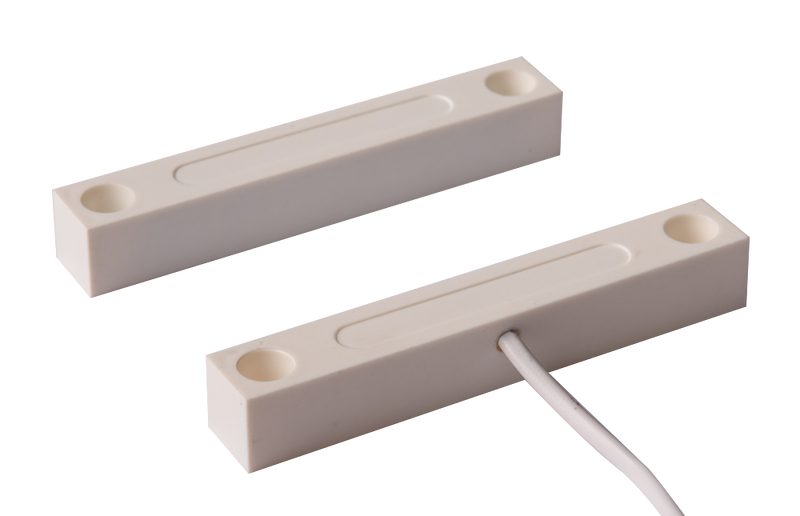

Description
Features:
- Longer leads available
- Colors: White, Brown, Gray
- 18″(458mm) 22 AWG Jacketed Leads
Technical Specifications
Color

										White



































Operation Gap

										1.5″(38)

Loop Type

										SPDT



































Reed Form

										SPDT

Max Framerate

										3



































Coil Resistance

										100

Voltage

										AC30/DC30



































Current

										0.2

Operating Temperature

										-40°C to +60°C



































Dimensions

										4.13″L×.65″W×.63″H

Compliance
				- CE
- RoHS
- CUL US Listed
