Description

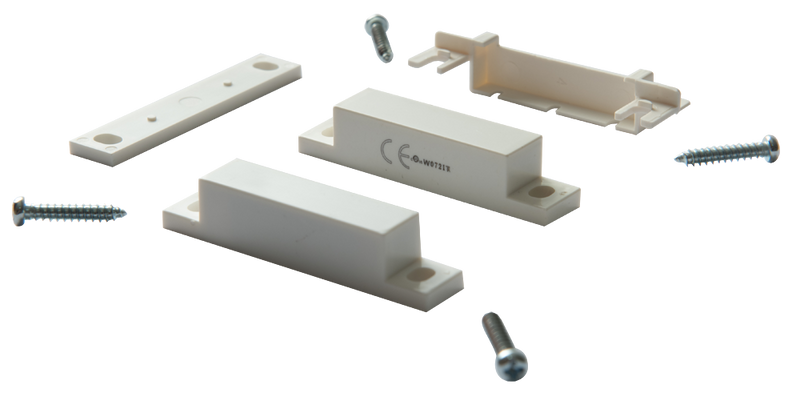

The SM-35B-WH is a wired, surface mount, magnetic door/window contact switch from Tane Alarm Products, designed for quick and easy installation.
Features:
- Wired, surface mount, magnetic door/window contact switch.
- Surface mount with quick-connect terminals, spacers, screws, and covers included.
- The SM-35B-WH is designed for easy installation on door or window frames.
Technical Specifications
Color

										White



































Operation Gap

										.75"(19)

Loop Type

										OPEN



































Reed Form

										Normally Closed

Max Framerate

										3



































Coil Resistance

										100

Voltage

										AC30/DC30



































Current

										0.2

Operating Temperature

										-40°C to +60°C



































Dimensions

										2.48″L×.48″W×.51″H

Compliance
				- CE
- RoHS
- CUL US Listed
