Description

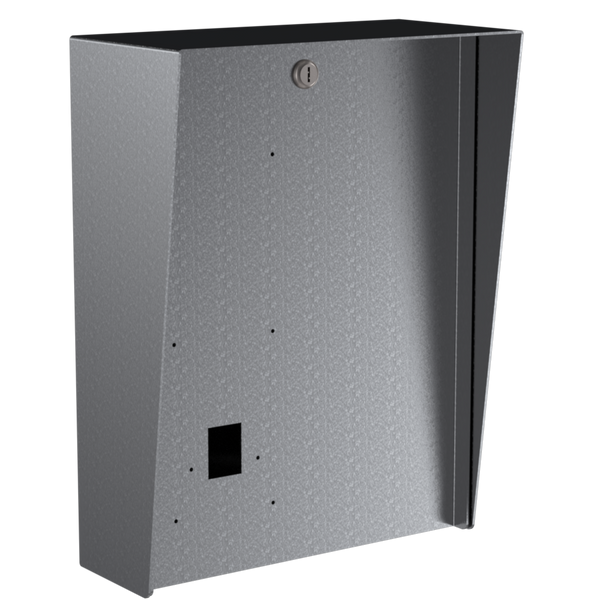

Housing with cutout for Swiftlane Swiftreader X Surface Mount, brushed #4 finish, 14 gauge #304 stainless steel, 3" deep back box, 3" overhang at the top tapering to 1.75" at the bottom, 1.8" center hole with knockouts, EPDM rubber seals, NEMA 4.x
Features:
- Made from heavy duty 14-gauge stainless steel, this outdoor-rated, door station enclosure gives security installers the flexibility to mount and protect your device on a pedestal or wall.
- This housing is specifically designed to accept Swiftlane Swiftreader X Surface Mount and incorporates features such as an EPDM rubber seal, stainless steel hinge, sufficient backbox space, a privacy/weather shroud, convenient knockouts, and a brushed #4 stainless steel finish (180 grit.)
- Custom cutouts on the door panels to match your devices can be requested-- additional costs and lead times may apply.
- 3" Overhang at the top tapering to 1.75" at the bottom
- NEMA 4.x
- EPDM Rubber seals
Technical Specifications
Material
Stainless Steel
Finish
Brushed Stainless
Color
Silver
Mount Type
- Pedestal Mount
- Wall Mount
Product Dimensions
16 x 8 x 6 inches
NEMA Type
NEMA 4X
Warranty
60 Days Warranty
Warranty
60 Days Warranty
