Description

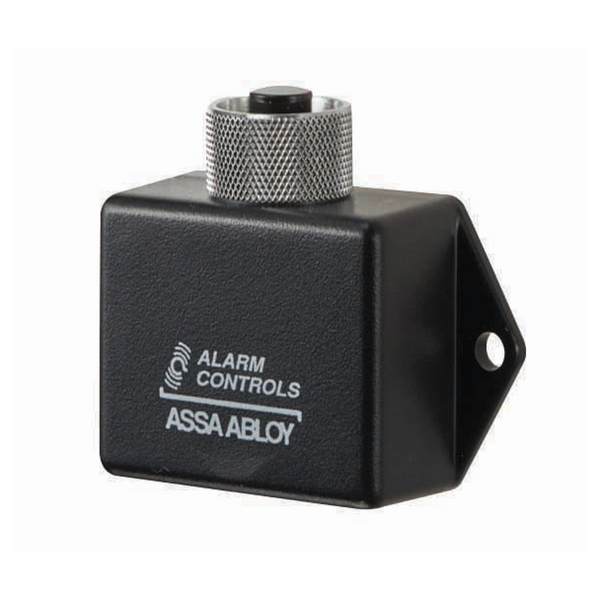

Surface Mounted, Alternate Action Push Button with Guard Ring, SPDT 4A Contacts
Features:
- TS-18 with momentary action switch
- TS-19 with one N/O and one N/C momentary action switch; can be used with either provided switch
- TS-20 with alternate action switch; can be used with either provided switch
- Black ABS plastic box with two mounting ears
- Surface mounted push button protected with 1" guard ring
- Depressing push button operates switch contacts
Technical Specifications
Enclosure Material
Black ABS plastic
Finish
Black ABS
Switch Type
- Alternate-action SPDT
- DPDT option (TS-20D)
Contact Rating
- 10 A @ 35 V DC
- also rated for 120 V AC
Guard Ring Diameter
1in
Dimensions
1in × 1.5in × 2in
Termination Leads
12in colored leads
Mounting
Under-desk surface mount
Compliance
- UL 636 listed
- CSA certified
Housing Finish
Matte black ABS
Button Action
Alternate action (push-on/push-off)
Applications
Remote control of door locks
Warranty
Limited Lifetime Warranty
