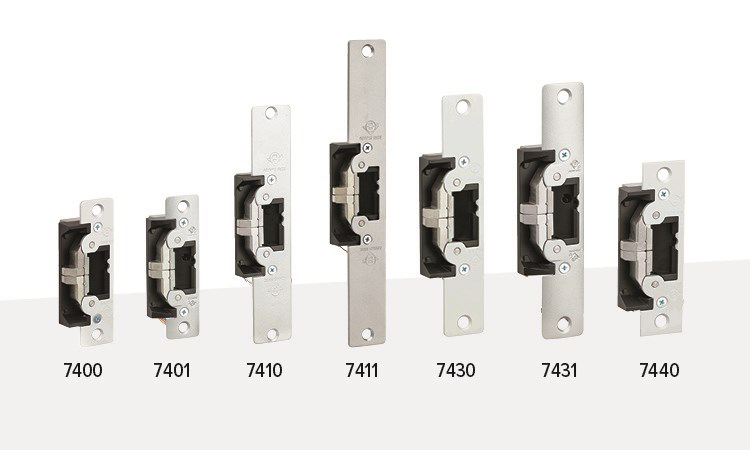

Description
Designed for use with Adams Rite deadlatches or cylindrical locksets with 1/2" [12.7 mm] to 5/8" [15.9 mm] latchbolt projection.
Features:
- 1-7/16" x 7-15/16" [36.5mm x 201.6mm]
- Flat with radius corners
- No (Monitored)
- 630 = Satin Stainless
- Same body as 7410-628, only finish differs
Technical Specifications
Faceplate Shape
Flat with radius corners (7410)
Finish
Satin Stainless Steel (630)
Faceplate Size
1‑7/16″ × 7‑15/16″
Case Material
Zinc‑aluminum alloy
Keeper Material
Stainless steel
Holding Force
- 1
- 500lb fail‑secure
Preload Capacity
Up to 25lb preload release
Strike Opening
5/8″ adjustable × 1‑7/16″ × 1/2″ deep
Latchbolt Compatibility
½″–5/8″ projection
Case Dimensions
1‑13/32″ × 3‑3/8″ × 1‑1/16″ deep
Voltage
12/16/24VAC/DC selectable
Current Draw @12V
0.44A
Current Draw @16V
0.46A
Current Draw @24V
0.23A
Connector
Quick‑connect
Fail‑Secure/Safe
Field‑selectable
Compliance
- UL 1034
- UL 294
- ULC‑S319
- ANSI/BHMA A156.18 & .31
- Grade 1
Cycle Rating
≥250000 cycles
Impact Strength
70ft‑lb
Package Includes
- Mounting screws
- tabs
- shims
- voltage adapters
Modular Options
- Monitoring
- lip kits
- ElectroLynx
Grade
ANSI/BHMA Grade1
Warranty
5‑Year Limited
Warranty
5‑Year Limited Warranty
