Description

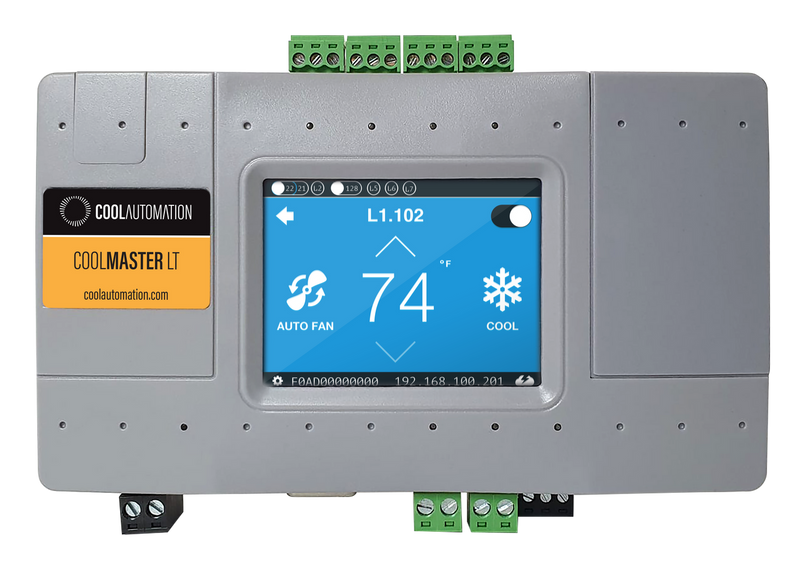

CoolMasterLT allows facilities managers, service providers and HVAC professionals the ability to control, monitor, service, and manage any VRF, by enabling a bi-directional universal communication channel between the VRF and the cloud based mobile App. CoolMasterLT is a Plug and Play device, simply unbox it and connect it to your VRF System
Features:
- Universal Interface to all major VRF models with up to 8 indoor units
- Option to integrate 3rd system over Modbus
- Intuitive Mobile Applications for remote control and basic diagnostics
- Native integration with leading cloud services including Google Assistant, Amazon Alexa, Smart Thermostats and many more.
- Enables access to Cool Automation Professional Application packages for Facilities Management, Service provision and energy optimization.(additional license)
Technical Specifications
Voltage
9-24 VDC
Consumption
1.5W
Operating Temperature
-10° C to +60° C / +14 F to +140 F
Mount Type
- Wall Mount
- DIN Rail Mount
Display Type
Integrated TFT Touchscreen
Protocol
- ASCII MODBUS
- BACnet IP Rest API
