Description

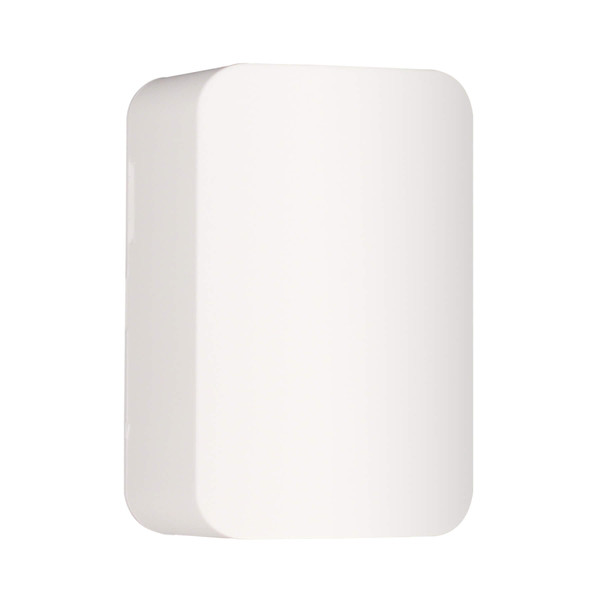

The 2GIG TILT100-345 sensor is designed to monitor the tilt of assets like garage doors, mailboxes, pet doors, or storm cellar doors. It communicates with the control panel using a 345 MHz frequency, transmitting a signal when titled beyond 45 degrees and sending a restore signal once it returns to a less than 45-degree angle. The sensor includes a tamper switch that alerts if the cover is removed and features low battery monitoring, sending a report when the battery level is low.
Features:
- Monitors tilt status
- Case tamper and battery supervision 2GIG 345MHz compatible
- Double-sided tape and mounting screws included
- Battery life up to 10 years
- On-off switchable encryption
Technical Specifications
Warranty
2 Year Warranty
Frequency
345MHz
Compatibility
2GIG Panels
Output Codes
- Alarm
- Alarm Restore
- Supervisory
- Tamper
- Tamper Restore
- Low Battery
Material
ABS Plastic
Operating Temperature
2° to 120°F (-16 to 49°C)
Operating Humidity
- 15% to 85%
- Non-condensing
Battery
One 3V CR2450 Lithium Battery
Battery Life
Up to 10-years
Compliance
- ETL
- FCC
- Industry Canada
Warranty
2 Year Warranty
