Description

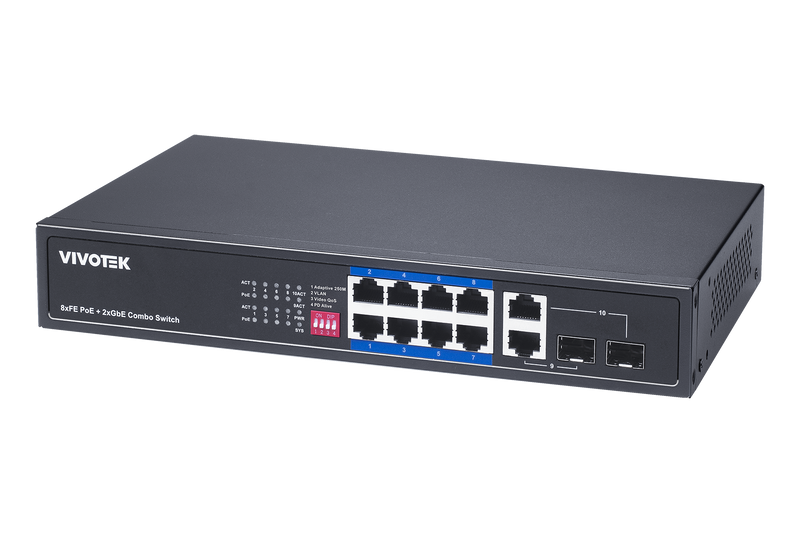

Operate IP security cameras, access points, and other powered network devices by integrating the Vivotek AW-FGT-100P-110 8-Port 100Mb PoE+ Compliant Unmanaged Switch into your network. This entry-level unmanaged switch features eight 10/100 Mb/s RJ45 Ethernet ports that can provide up to 30W of power to compatible devices with a total budget of 110W. There are also two RJ45 / SFP combo ports available for up to 1 Gb/s uplinks.
Features:
- Unmanaged 4-port PoE 10/100 Mbps switch for simple plug-and-play camera networks.
- Provides PoE power for up to four IP cameras or low-power devices.
- Ideal for small systems, remote buildings, and edge network extensions.
- Fanless design offers silent, reliable operation in office or security rooms.
- Compact form factor fits easily in junction boxes, cabinets, or NVR racks.
Technical Specifications
Bandwidth
5.6Gbps
Consumption
120W
Current
30W
Forwarding Rate
1.488Mps
Frequency
50-60Hz
MAC Addresses
4K
Operating Temperature
0°C ~ 45°C (32°F ~ 113°F)
PoE Port
8xFE PoE
Surge Protection
6KV
Voltage
100-240V
