Description

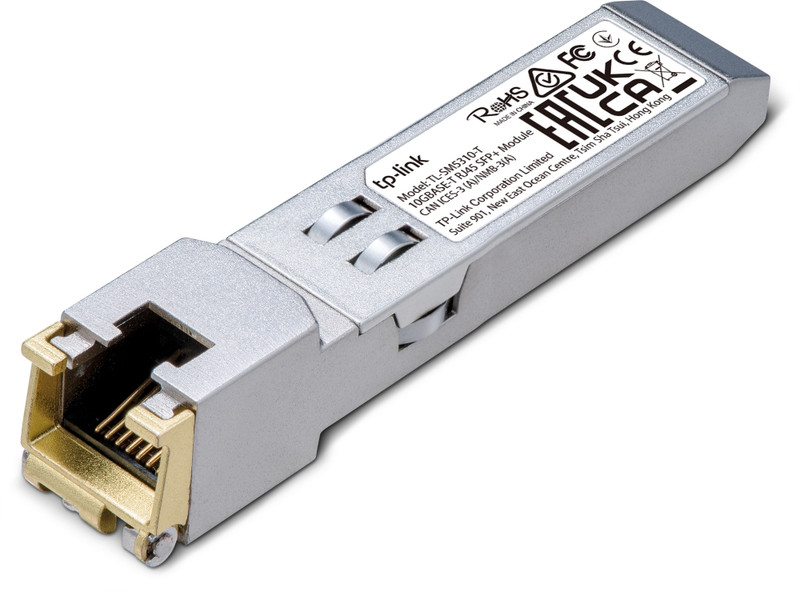

The TP-Link TL-SM5310-T (often listed as SM5310-T) is a high-speed, hot-pluggable SFP+ to RJ45 copper module. It allows you to convert an SFP+ fiber optic port on a switch or router into a standard copper Ethernet port, supporting speeds up to 10 Gbps
Features:
- Support 10GBASE-T, 5GBASE-T, 2.5GBASE-T, 1000BASE-T, and 100BASE-TX
- Transmit data up to 30m at 10 Gbps (UTP cat.6a or above)
- Support DDM (Temperature and Voltage)
- Hot-Pluggable SFP+ Footprint Features
- Support TX Disable function
- Fully Metallic Enclosure for Low EMI
Technical Specifications
Compliance
FCC CE RoHS
Data Rate
10.3Gbps
Dimensions
2.7*0.5*0.5 in (67.4*13.75*13.8 mm)
Ethernet Port
1x 10G RJ45 Port
Hot Swappable
Yes
Operating Temperature
0–70 ℃ (32–158 ℉)
Protocol
IEEE Std 802.3 802.3ab 802.3bz 82.3an
Voltage
3.3V
Warranty
2 Year Warranty
