Description

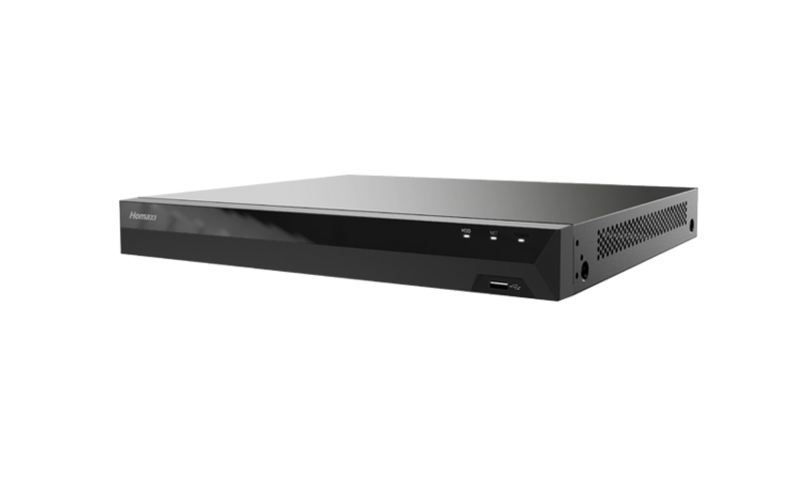

The NVR602S-16P16 is a commercial-grade NVR supporting up to 12MP resolution cameras. It features PoE connectivity and dual hard drive bays for expanded storage capacity. Designed for professional environments, it delivers high-performance recording and system reliability.
Features:
- Incoming/Outgoing Bandwidth:160M/80M
- Supports mainstream cameras of ONVIF and RTSP protocol
- AI by Camera: SMD,perimeter protection,face detection,etc.
- H.265+/H.265 dual-stream video compression
- VGA/HDMI simultaneous video output, maximum resolution of HDMI® is 4K
- NDAA Compliant
Technical Specifications
Channels
8 Channel
Consumption
15W
Dimensions
14.96" × 13.03" × 1.77", 1U (380 × 330.9 × 45 mm))
Ethernet Port
1 RJ45 10/100/1000 Mbps Self Adaptive
Operating Temperature
(-10°C ~ 55°C) (14°F ~ 131°F)
Playback Control
Smart Playback, Normal/Time, Division/Label/Event Playback
SATA
2SATA Interface
Storage Capacity
2HDD
USB Port
1xUSB 2.0
Weight
7.93 lb (3.6kg)
Warranty
3 Year Warranty
