Description

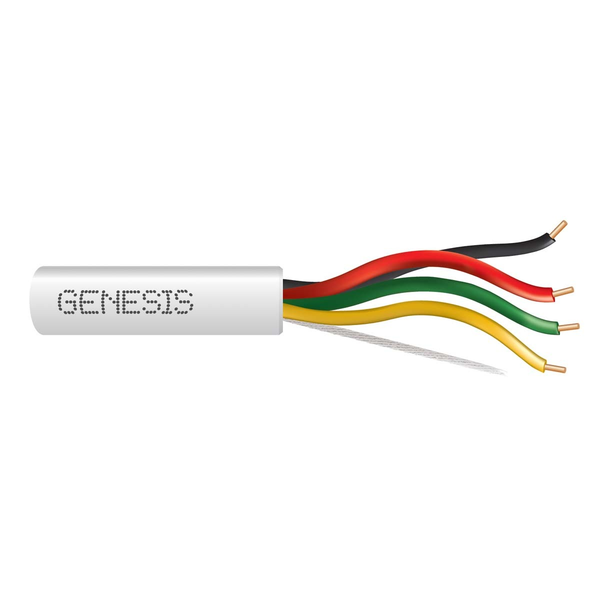

Genesis Fire Alarm Cables ensure uninterrupted fire protection. Built to exceed the demands of rigorous fire safety codes and regulations, UL listed, and Made in the USA
Features:
- Full-coverage foil shield and drain deliver low-noise signaling
- CMP/FT6 plenum compliant for air-handling spaces (NEC 300.22(C))
- Built-in ripcord plus sequential footage marks streamline install
- Consistent performance for sensors, annunciators, and control circuits
- 300 V rating; installs from −20 °C to 75 °C without drama
- Straightforward jacket printing simplifies circuit ID at a glance
Technical Specifications
American Wire Gauge
16AWG
CAT
CL3P FPLP
Cable Length
1000ft
Cable Type
Fire Alarm Unshielded Cable
Color
White
Compliance
NFPA 262, CSA C22.2 No. 2556, UL444, UL1424, UL13, REACH/RoHS
Conductor Type
Solid Bare Copper
Jacket Type
PVC
Nominal Weight
41lbs/1000ft
Number Of Conductors
4
Package Type
Reel
Shield Type
Unshielded
Stranding
Solid
Voltage
300V
