Description

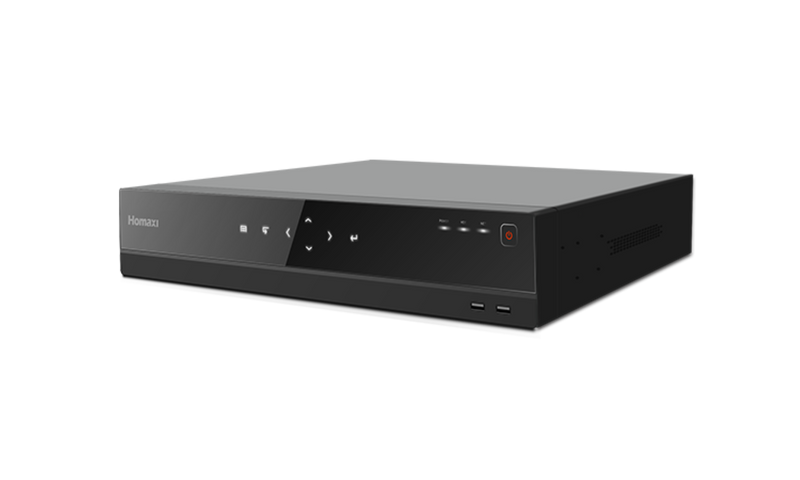

The NVR604E-16P16 is a 16-channel NVR with 16 PoE ports and support for up to four hard drives. Preconfigured with 4TB of storage, it is ready for demanding surveillance applications. Its 1.5U chassis supports enterprise-level performance and scalability.
Features:
- Incoming/Outgoing Bandwidth:160M/256M
- Supports mainstream cameras of ONVIF and RTSP protocol
- AI by Camera:SMD,perimeter protection,face detection,etc
- H.265+/H.265 dual-stream video compression
- Playback:16CH 1080P@30fps/8CH 4M@30fps/6CH 5M@30fps/4CH 4K@30fps
- NDAA Compliant
Technical Specifications
Channels
16 Channel
Consumption
20W
Dimensions
17.32" × 17.64" × 2.76", 1.5U (440×448 ×70mm)
Ethernet Port
1 RJ45 10/100/1000 Mbps Self Adaptive
Operating Temperature
(-10°C ~ 55°C) (14°F ~ 131°F)
Playback Control
Smart Playback, Normal/Time, Division/Label/Event Playback
SATA
4SATA Interfaces
Storage Capacity
4TB
USB Port
2xUSB 2.0, 1xUSB 3.0
Weight
13.89 lb (6.4kg)
Warranty
3 Year Warranty
