Description

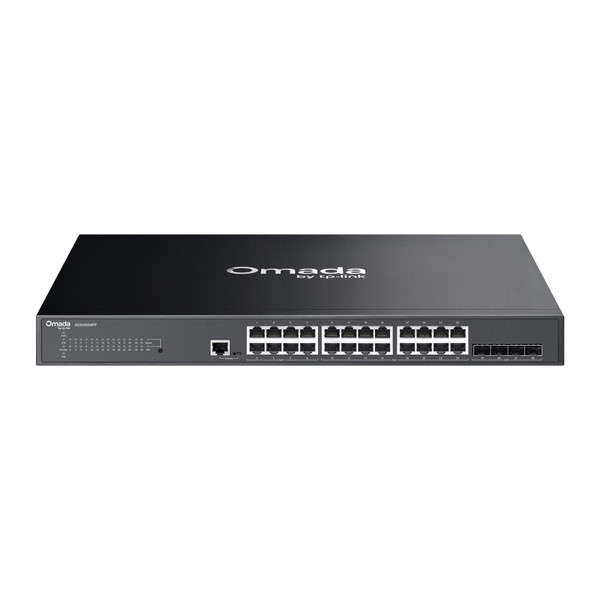

The TP-Link Omada SG3428XMPP is a high-power, fully managed 24-port Gigabit switch with four 10G SFP+ uplinks. It features eight 90W PoE++ ports and sixteen 30W PoE+ ports with a 500W power budget, making it ideal for powering Wi-Fi 6/7 access points and PTZ security cameras
Features:
- 4x 10 Gbps SFP+ slots
- 8× Gigabit 802.af/at/bt PoE++ ports (Max 90 W PoE budget for each port)
- 16× Gigabit 802.3af/at PoE+ ports (Max 30 W budget for each port)
- 500 W total PoE budget
- Centralized cloud management via the web or the Omada app
- Standalone management via web, CLI, SNMP, and RMON
Technical Specifications
Buffer
12Mbit
Compliance
CE FCC
Consumption
605.5W(110V/60Hz)
Dimensions
17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm)
Ethernet Port
24x 10/100/1000Mbps RJ45 Port (8x PoE++/16x PoE+), 4x10G SFP+ Slots
Fans
3 Fans
Forwarding Rate
95.23Mpps
Heat Dissipation
2064.96BTU/hr
MAC Address
16K
Mount Type
Rack Mount
Surge Protection
6kV
Switch Rating
128Gbps
USB Port
1x Micro USB Console Port
Warranty
5 Year Warranty
