Description

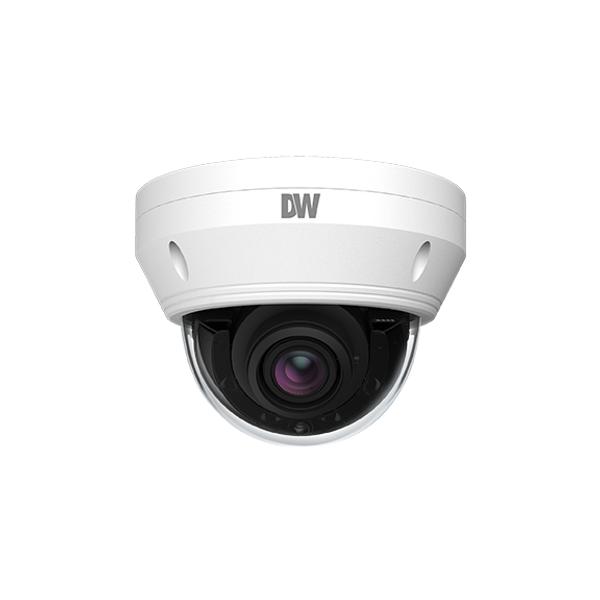

These MEGApix® IP cameras are NDAA compliant and deliver crystal-clear images at 4MP resolution and real-time 30fps. The vandal dome camera features a 2.8~12mm vari-focal lens with motorized zoom in an IP67-rated, IK10 impact-resistant housing. Added intelligence includes line crossing, perimeter intrusion and video tampering detection. All MEGApix® cameras are ONVIF conformant, assuring their successful integration with any open platform solution on the market.
- 4MP 1/3" image sensor at real-time 30fps
- Vari-focal lens with motorized zoom and autofocus for complete remote lens control and focused image any time
- True Wide Dynamic Range (WDR) for clear images in challenging light
- Simultaneous streaming and multiple codec options for smart bandwidth management
- 164' Smart IR™ with intelligent camera sync for clear B/W images with no need for external light
- Line crossing video analytics
- Perimeter intrusion video analytics
- Video tampering with scene-change detection video analytics
- Video tampering with video-blur detection video analytics
- Video tampering with abnormal color detection video analytics
- Smart DNR™ 3D digital noise reduction reduces noise and ghosting for motion in low-light environments.
- Privacy zones cover sensitive areas in the camera's field of view.
- Backlight compensation (BLC)
- Two-way audio with a built-in microphone for direct communication between the monitoring station and the camera's location
- Local SD card slot for local recording in case of network loss
- Web server built-in for easy camera management from any browser
- PoE and DC12V for single cable simplified installation
- NDAA compliant for federal and government projects
- IP67- and IK10-rated camera housing built to last
- 5 year warranty
Technical Specifications
3D Digital Noise Reduction
Smart DNR™ 3D Digital Noise Reduction
Audio Compression
G.711A / U
Auto Gain Control
Auto
Backlight Compensation (BLC)
Yes
Camera Analytics
Line Crossing, Perimeter Intrusion, video Tampering Detection (Scene Change, Video Blur, Abnormal Color Detection)
Camera Dimensions (H X W X D)
5.55" x 3.93" (141 x 100 mm)
Camera Weight
1.98 lbs (0.9kg)
Certifications
FCC, CE, ROHS, ONVIF, NDAA
Day And Night
Auto day/night, Day (color), Night (B/W)
De-fog
Yes
Environmental Operating Humidity
0-95% RH (non–condensing)
Environmental Operating Temperature
-22°F ~ 140°F (-30°C ~ 60°C)
Focal Length
2.8mm ~ 12mm
Horizontal Field Of View (HFOV)
92°~31°
Housing
Vandal Dome
IK Rating
IK10 Rated
IP
IPv4, IPv6
IP Rating
Weather Resistant (IP67)
Illumination Distance
164' range Smart IR™
Image Sensor
4MP 1/3" CMOS sensor (x4)
LAN
802.3 compliance 10/100 LAN
Lens Type
Vari-focal Lens
Materials
Aluminum die-casting
Maximum Resolution
4MP
Memory Slot
Micro SD/SDHC/SDXC class 10 card (card not included), Up to 1TB micro SD / FAT32
Minimum Scene Illumination - Color
0.0 lux (B/W), 0.005 lux (color)
Mirror/flip
Yes
Motion Detection
Yes
Network Resolution
4MP, 3MP,2.1MP/1080P, 720P, D1, 480×240, CIF (60Hz: 1 ~ 30fps; 50Hz: 1~25fps)
Operational Notifications
Email, FTP server
Power Consumption
DC12V: max 7.5W, 625mA, PoE: max 7.5W
Power Requirements
Adapter not included, PoE
Privacy Zones
8 programmable privacy masks
Protocol
802.1x, DDNS, DHCP, FTP, HTTP, HTTPs, ICMP, IGMP, NTP, ONVIF, PPPoE, QoS, RTCP, RTP, RTSP, SMTP, SNMP, UDP, UPnP
Security
Digest authentication (ID/PW), IP filtering, MAC filtering
Sharpness
Yes
Shutter Mode
Auto, Manual
Shutter Speed
1/30 ~ 1/100000
Stream Speed
Up to 30fps at all resolutions
Total Pixels
2560 (H) x 1440 (V)
Vertical Field Of View (VFOV)
48°~17.2°
Video Compression Type
H.264, H.265, MJPEG
Video Management Software
Any ONVIF conformant CMS, DW Spectrum® IPVMS
White Balance
Yes
Wide Dynamic Range (WDR)
True WDR 120dB
Warranty
5 Year Warranty
