Description

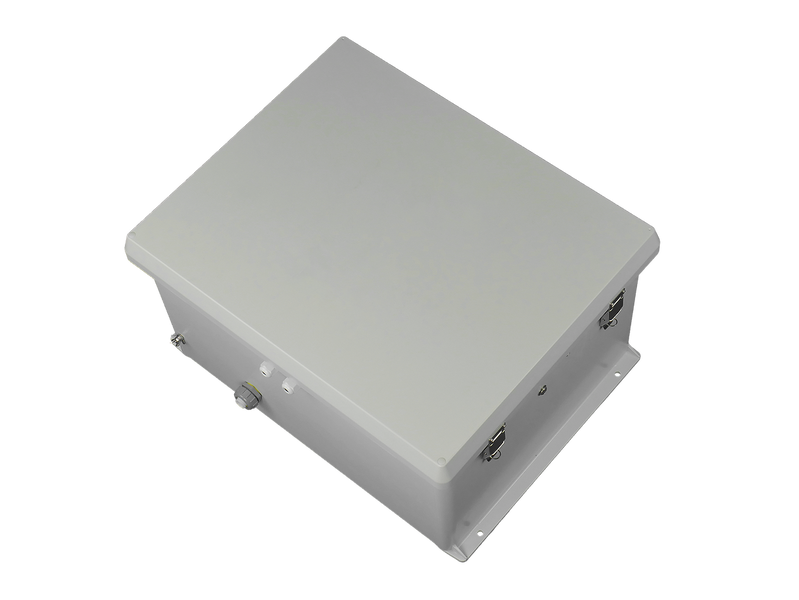

The Hana Wireless Gen 2 enclosure is a rugged weatherproof enclosure constructed from molded UV stable fiberglass reinforced polyester (FRP). It is ideal for both indoor and outdoor applications and is well suited for high temperature or corrosive environments. Every Gen 2 enclosure comes standard with a fully gasketed lid ensuring NEMA integrity, stainless steel hinge and padlockable latches for corrosion resistance and an integral mounting flange for mounting without the need for extra hardware. The color of the Gen 2 enclosure is an aesthetically pleasing machine tool gray (RAL 7035), allowing for a clean, cool, neutral appearance in any application.
Features:
- Molded Fiberglass Reinforced Polyester (FRP) industrial Enclosure
- Stainless steel quick release latches with padlock hasps
- NEMA Type 4, 4X / IP66 rated
- Fully gasketed raised lid & integral mounting flange
- Vertical configured 5U 19in sliding rack mount
- Dimensions (30x24x11 in)
Technical Specifications
Cable Feed
1x 1/2in Conduit Connector, 4xPG11
Color
Tool Grey RAL 7035
Compliance
UL 94-5V, RoHS
Dimensions
Outside 31.5x25.5x13.5in, Inside 30x24x10.6in
Fans
24 Watts
IP Rating
IP24
Material
FRP
Mount Type
Plate Anodized Aluminum
NEMA Type
NEMA 3R, NEMA 3RX
Voltage
120VAC
