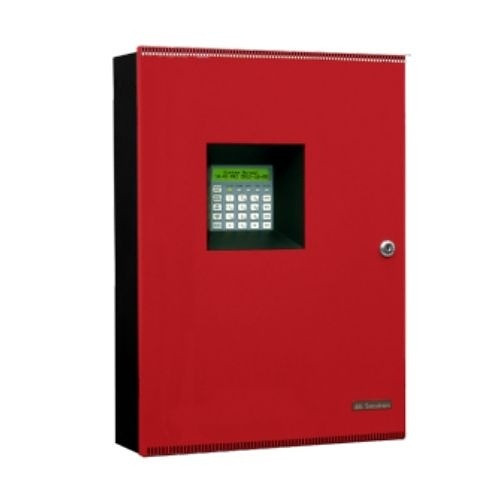

Description
The MR-2306-DDR is equipped with six Class "B" (Style "B") initiating circuits and two Class "B" (Style "Y") indicating circuits rated at 1.7A maximum. (Total of 5A) The MR-2306-DDR is equipped with a built-in UDACT/Digital Communicator. One MR2300-A Six Initiating Circuit Class "A" Converter Modules may be used for Class "A" (Style "D") wiring of the initiating circuits. One MR-2300-NC2 Two Indicating Circuit Class "A" Converter Module may be used for Class "A" (Style "Z") wiring of the indicating circuits.
Features:
- The cabinet will support up to 12AH batteries
- The panels can be semi-flush-mounted with the optional MR-2300TRB trim ring
Technical Specifications
Battery
12AH
Color
Red
Display Type
LCD Display
Mount Type
Semi Flush
Number Of Zones
6 Zone
Product Type
Fire Alarm Control Panel
Warranty
3 Year Warranty
