Description

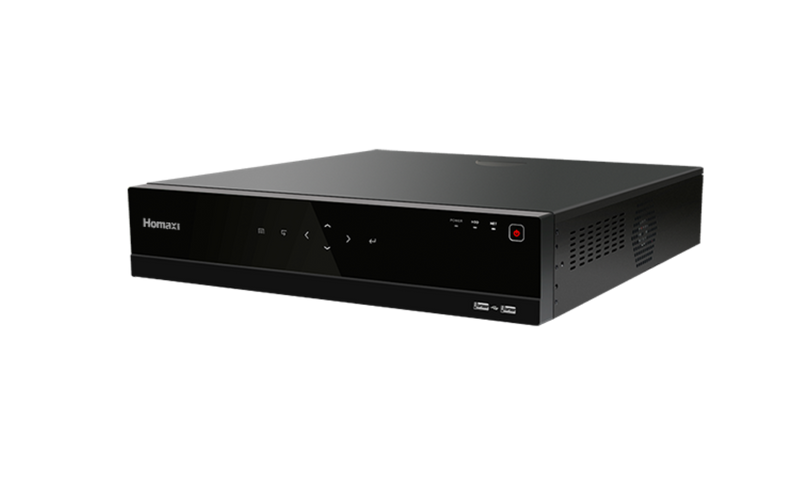

The NVR808H-64 is a powerful 64-channel NVR housed in a 2U chassis with support for eight hard drives. It is designed for large, complex surveillance systems requiring extensive storage and processing power. This recorder delivers enterprise-grade reliability and advanced video management capabilities.
Features:
- 64CH IP video input, up to 12MP
- Incoming/Outgoing bandwidth: 1024Mbps/800Mbps (without raid)
- Supports mainstream cameras of ONVIF and RTSP protocol
- AI by camera: SMD, perimeter protection, face detection, etc.
- Decoding: 32CH 1080P@30fps/16CH 4Mp@30fps/8CH 8Mp@30fps/5CH 12Mp@30fps
- NDAA Compliant
Technical Specifications
Channels
64 Channel
Consumption
30W
Dimensions
17.32" × 17.80" × 3.54", 2U (440 × 452 × 90 mm)
Ethernet Port
2 RJ45 10/100/1000 Mbps Self Adaptive
Operating Temperature
(-10°C ~ 55°C) (14°F ~ 131°F)
Playback Control
Smart Playback, Normal/Time, Division/Label/Event Playback
SATA
8SATA Interfaces
Storage Capacity
8HDD
USB Port
2xUSB 2.0, 2xUSB 3.0
Weight
17.63 lb (8kg)
Warranty
3 Year Warranty
