Description

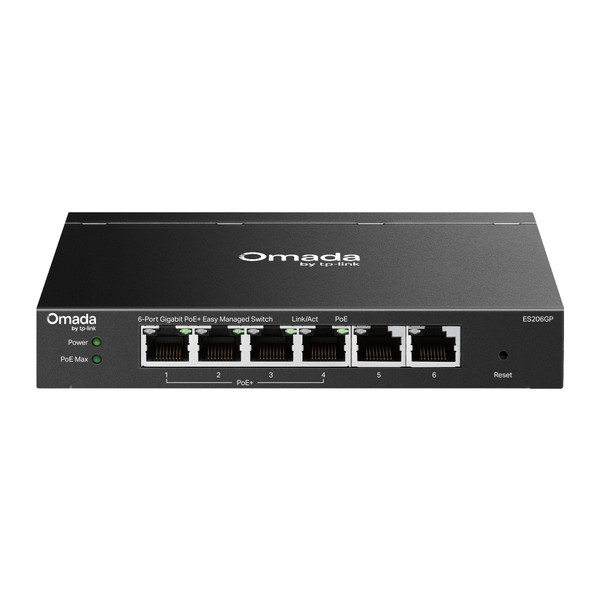

The TP-Link ES206GP is an Omada 6-port gigabit easy-managed switch featuring 4 PoE+ ports and a 65W power budget. Designed for small deployments, it offers centralized cloud management, reliable surveillance networking, and a fanless design for silent operation
Features:
- 6x 10/100/1000Mbps RJ45 ports (4x 802.3af/at-compliant PoE+)
- 65W Power Budget, with up to 30W for each PoE port
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralized Cloud Management via the web or the Omada app
- Automatic Loop Prevention, VLAN, and IGMP Snooping
- Fanless design for silent operation
Technical Specifications
Buffer
4 Mbit
Compliance
FCC CE RoHS
Dimensions
6.2 × 4.0 × 1.0 in (158 × 101 × 25 mm)
Ethernet Port
6x 10/100/1000Mbps RJ45 Port
Fans
Fanless
Forwarding Rate
8.93Mpps
Installation Type
Desktop, Wall Mount
MAC Address
8K
Operating Temperature
-5℃~40℃ (23℉~104℉)
Surge Protection
6kV
Switch Rating
12Gbps
Voltage
Input 100-240V AC, Output 53.5V DC/1.31A
Warranty
5 Year Warranty
